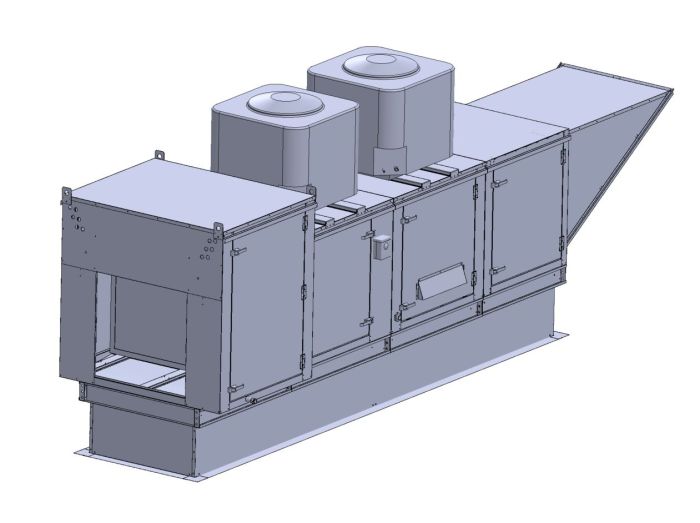

TK1 - 3PH (1850 cfm) - Direct Gas Fired Tempered Makeup Air Unit/DX
SKU:
TK1DD-DX-3PH

TK1-DX-3PH - DIRECT GAS FIRED TEMPERED MAKEUP AIR UNIT/DX

Gas-Fired Tempered Make-Up Air Unit with Direct Expansion/Maximum 1,850 CFM's, 208/230/460V, 3-Phase with Motorized Damper and a 10" Blower

  • Gas-Fired Tempered Make-Up Air Unit with Direct Expansion handles a Maximum of 1,850 CFM's @ 0.5" wg ESP
  • Max Temperature Rise of 100 Deg F. 129,600 BTU's, Natural Gas/LP Burner
  • 5 Ton, Dual Circuit DX Cooling
  • Adjustable CFM Range 1800-1850
  • Fully Packaged Unit with 14 SEER Condensing Unit(s)
  • 2.000 HP, 1 Phase, 208/230/460V, 60 Hz, ODP (Open Drip Proof)
  • 10" Blower.
  • Motorized Back-Draft Damper.
  • Curb Mount.
  • Curb Insulation Available.
  • 24 month parts-only warranty
  • Recommended for hood Sizes 4-12

Features

  • Sloped Screened Intake with Washable Metal Mesh Filters
  • Discharge Temperature Control - 40-90 degree F (4-32 degree C)
  • Made in USA
  • 3/4"" Gas Line Manifold Constructed in Conformance to ANSI Standards
  • 24 month parts-only warranty
  • Heavy Gauge Stainless Steel Condensate Pans

Overview

Direct Gas-Fired Heater, for use in tempering make-up air. Packages are certified to the ANSI Z83.4a-2001/CSA 3.7a-2001 combined safety standard. One size is available with a max BTU rate of 270,000 and 1,850 CFM. Housing constructed of heavy duty G90 galvanized steel • Forward curved centrifugal blower wheel • Vibration isolation • Adjustable drive assemblies • Adjustable motor mount • Ball bearing motors • Heavy duty, pre-lubricated bearings rated for 200,000 hours of operation • Service doors on both sides • Horizontal & down discharge • Large intake area ensures low pressure drop across unit • Spring loaded profile plates automatically adjust for any airflow - no manual setting required! • Weatherproof safety disconnect switch • Modular design provides design flexibility • Fully insulated casing With DX cooling, refrigerant flows through the evaporator coils to absorb heat, thus cooling and dehumidifying the air. A compressor moves the coolant through the coils and a condenser removes the absorbed heat for exhaust outside
