Condensate Exhaust Only

' . __('Add to Wish List') . ' Add to Compare
3' x 36"
Condensate Hood Type 2 - 3' x 36"
- Constructed with 18 Gauge 304 SS
- 12" x 12" Wire Mesh Filter and Frame
- Made in USA
- Full perimeter gutter and drain
- Hanging Brackets
- 2 Year Warranty
Orig.Price $2,085.01 Your Price $1,918.21

VIEW DETAILS
' . __('Add to Wish List') . ' Add to Compare
3' 6" x 42"
Condensate Hood Type 2 - 3' 6" x 42"
- Constructed with 18 Gauge 304 SS
- 12" x 12" Wire Mesh Filter and Frame
- Made in USA
- Full perimeter gutter and drain
- Hanging Brackets
- 2 Year Warranty
Orig.Price $2,149.22 Your Price $1,977.28

VIEW DETAILS
' . __('Add to Wish List') . ' Add to Compare
4' x 48"
Condensate Hood Type 2 - 4' x 48"
- Constructed with 18 Gauge 304 SS
- 12" x 12" Wire Mesh Filter and Frame
- Made in USA
- Full perimeter gutter and drain
- Hanging Brackets
- 2 Year Warranty
Orig.Price $2,237.66 Your Price $2,058.65

VIEW DETAILS
' . __('Add to Wish List') . ' Add to Compare
5' x 48"
Condensate Hood Type 2 - 5' x 48"
- Constructed with 18 Gauge 304 SS
- 12" x 12" Wire Mesh Filter and Frame
- Made in USA
- Full perimeter gutter and drain
- Hanging Brackets
- 2 Year Warranty
Orig.Price $2,378.19 Your Price $2,187.94

VIEW DETAILS
' . __('Add to Wish List') . ' Add to Compare
6' x 48"
Condensate Hood Type 2 - 6' x 48"
- Constructed with 18 Gauge 304 SS
- 12" x 12" Wire Mesh Filter and Frame
- Made in USA
- Full perimeter gutter and drain
- Hanging Brackets
- 2 Year Warranty
Orig.Price $2,518.73 Your Price $2,317.24

VIEW DETAILS
' . __('Add to Wish List') . ' Add to Compare
7' x 48"
Condensate Hood Type 2 - 7' x 48"
- Constructed with 18 Gauge 304 SS
- 12" x 12" Wire Mesh Filter and Frame
- Made in USA
- Full perimeter gutter and drain
- Hanging Brackets
- 2 Year Warranty
Orig.Price $2,620.50 Your Price $2,410.85

VIEW DETAILS
' . __('Add to Wish List') . ' Add to Compare
8' x 48"
Condensate Hood Type 2 - 8' x 48"
- Constructed with 18 Gauge 304 SS
- 12" x 12" Wire Mesh Filter and Frame
- Made in USA
- Full perimeter gutter and drain
- Hanging Brackets
- 2 Year Warranty
Orig.Price $2,799.81 Your Price $2,575.83

VIEW DETAILS
' . __('Add to Wish List') . ' Add to Compare
9' x 48"
Condensate Hood Type 2 - 9' x 48"
- Constructed with 18 Gauge 304 SS
- 12" x 12" Wire Mesh Filter and Frame
- Made in USA
- Full perimeter gutter and drain
- Hanging Brackets
- 2 Year Warranty
Orig.Price $2,977.90 Your Price $2,739.67

VIEW DETAILS
' . __('Add to Wish List') . ' Add to Compare
10' x 48"
Condensate Hood Type 2 - 10' x 48"
- Constructed with 18 Gauge 304 SS
- 14" x 14" Wire Mesh Filter and Frame
- Made in USA
- Full perimeter gutter and drain
- Hanging Brackets
- 2 Year Warranty
Orig.Price $3,092.99 Your Price $2,845.54

VIEW DETAILS
' . __('Add to Wish List') . ' Add to Compare
11' x 48"
Condensate Hood Type 2 - 11' x 48"
- Constructed with 18 Gauge 304 SS
- 14" x 14" Wire Mesh Filter and Frame
- Made in USA
- Full perimeter gutter and drain
- Hanging Brackets
- 2 Year Warranty
Orig.Price $3,169.32 Your Price $2,915.77

VIEW DETAILS
' . __('Add to Wish List') . ' Add to Compare
12' x 48"
Condensate Hood Type 2 - 12' x 48"
- Constructed with 18 Gauge 304 SS
- 14" x 14" Wire Mesh Filter and Frame
- Made in USA
- Full perimeter gutter and drain
- Hanging Brackets
- 2 Year Warranty
Orig.Price $3,220.19 Your Price $2,962.57

VIEW DETAILS

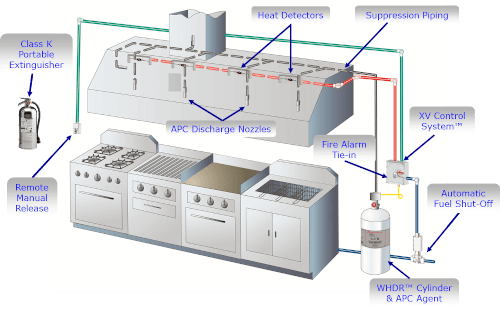

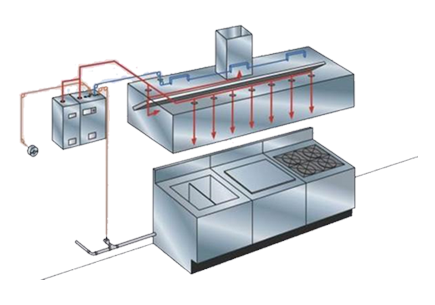

	ANSUL STANDARD SYSTEM	KIDDE SYSTEM	ANSUL SYSTEM DELUXE
FOOD TRUCKS HOODS	✓	✓	✓
CANOPY HOODS	✓	✓	✓
UL 300	✓	✓	✓
APPLIANCE SPECIFIC	✗	✓	✗
OVERLAP COVERAGE	✓	✗	✓
TANK	✓	✓	✓
GAS SHUT OFF VALVE	✗	✓	✓
CONTROL HEAD	✓	✓	✓
ENCLOSURE	✗	✗	✓
FIRE CHEMICAL	✗	✓	✓
C02 CARTRIDGE	✗	✓	✓
HOOD PIPING	✓	✓	✓
HOOD CONDUIT	✓	✓	✓
HOOD NOZZLES (APPLIANCE/DUCT/PLENUM)	✓	✓	✓
HOOD DETECTION BRACKETS	✓	✓	✓
MICRO SWITCH	✗	✓	✓
REMOTE PULL STATION	✓	✓	✓
FINAL HOOK UP	✗	✗	✗
PERMITS	✗	✗	✗
FINAL TEST	✗	✗	✗

Custom Stainless Steel Fabrication: Tailoring Your Kitchen for Success

Efficiency, durability, and design are key to running a smooth operation in any commercial kitchen. With so many moving parts, from prepping to cooking to cleaning...

Learn More

Enhancing Hygiene & Durability with Stainless Steel Wall Panels

Imagine you’re walking into your favorite local diner. You can practically smell the aroma of sizzling bacon and hear the clatter of pans as the kitchen staff works their magic.

Learn More

Maximizing Efficiency: The Benefits of Custom Fabrication for Commercial Kitchens

When it comes to commercial kitchens, efficiency is not just a buzzword; it’s a necessity. The ability to streamline operations, ensure smooth workflow, and maintain...

Learn More

Commercial Kitchen Design Considerations

Running a successful restaurant is no small feat, and a crucial aspect of ensuring its success lies in the effective setup and maintenance of a high-quality...

Learn More

Navigating Food Shields: Varieties and Key Supplier Considerations

Curious about the silent defenders of food safety? Get ready to explore the world of food shields with us! In the fast-paced realm of food service, where hygiene is everything...

Learn More

Products	Inner Diameter (ID)	Outside Diameter (OD)	Clearance To Combustibles	Clearance To Non- Combustibles	Total Footprint
Single Wall	10 - 22"	ID	18"	0"	OD+Clearance
Double Wall Reduced Clearance	10"-14"	ID+2.5	2"	0"	OD+Clearance
Double Wall Reduced Clearance	16"-22"	ID+2.5	3"	0"	OD+Clearance
Double Wall Zero Clearance	10"-22"	ID+6.5	0"	0"	OD+Clearance

200 CFM/foot Medium Duty
Hood Length (ft.)	200 CFMS Linear FT.	Ductwork Dia.	Hood Conn. Dia.
3'-0" to 5'-5"	600-1075	10	10
5'-6" to 7'-5"	1100-1475	12	12
7'-6" to 9'-11"	1500-1975	14	14
10'-0" to 10'-11"	2000-2100	16	10(2)
11'-0" to 15'-5"	2200-3175	18	12(2)
15'-6" to 20'-0"	3100-4000	20	14(2)

250 CFM/foot Heavy Duty
Hood Length (ft).	250 CFMS/ Linear FT.	Ductwork Dia.	Hood Conn. Dia.
3'-0" to 4'-5"	750-1125	10	10
4'-6" to 5'-11"	1150-1475	12	12
6'-0" to 7'-11"	1500-1975	14	14
8'-0" to 9'-11"	2000-2475	16	10(2)
10'-0" to 11'-11"	2500-2975	18	12(2)
12'-0" to 15'-5"	3000-3850	20	14(2)
15'-6" to 20'-0"	3875-5000	22	16(2)

FINANCING AVAILABLE

CLICK HERE For More Details

Condensate Exhaust Only

3' x 36"

3' 6" x 42"

4' x 48"

5' x 48"

6' x 48"

7' x 48"

8' x 48"

9' x 48"

10' x 48"

11' x 48"

12' x 48"

WELCOME

START YOUR PROJECT »

CHOOSE CATEGORY

Worktables

Shelving

Counters & Cabinets

Dish Tables

Sinks

Food Shields

Expo Lines & Serving Lines

Request a Quote

SELECT PRODUCTS

WELCOME TO OUR SHOP

PROJECT DETAILS

MANAGE PROJECTS

CURRENT PROJECT

PROJECT NAME :

PREVIOUS PROJECTS

Thank you forcreating your project withNorth American Kitchen Solutions!

Account Login

Shop by

FINANCING AVAILABLE

CLICK HERE For More Details

Let Us Help You!

BACKGROUND

LEARN MORE

Recommended Blog Links

Custom Stainless Steel Fabrication: Tailoring Your Kitchen for Success

Enhancing Hygiene & Durability with Stainless Steel Wall Panels

Maximizing Efficiency: The Benefits of Custom Fabrication for Commercial Kitchens

Commercial Kitchen Design Considerations

Navigating Food Shields: Varieties and Key Supplier Considerations

GUARANTEED TO PASS CODE ! WE WILL MATCH ANY COMPETITOR'S HOOD PRICES !

HOOD SYSTEMS

CUSTOM FABRICATION

EXPLORE HOODMART ®

POLICIES AND DOCUMENTATION

Hood Builder

TYPE 1

TYPE 2

Choosing the right size

Type 1 - Hood Equipment

Hood Style - Type 1

Hood Model

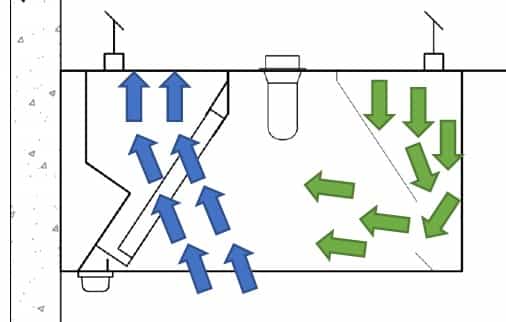

Short Cycle

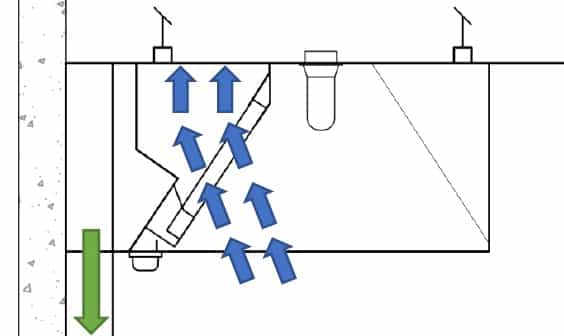

BRP

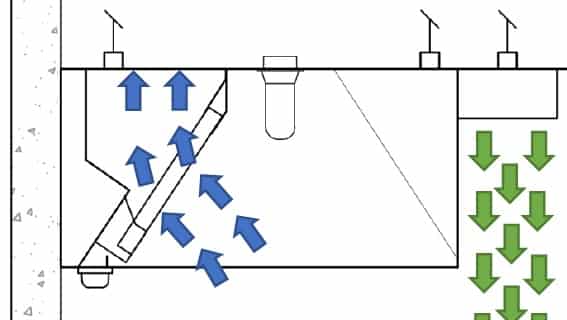

PSP

Fire Suppression

Pre-Piped System

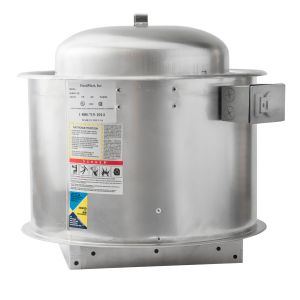

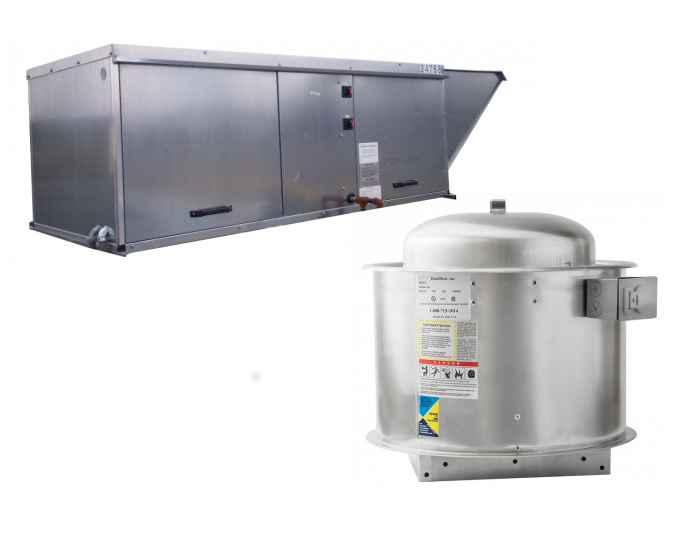

Fans(s)
