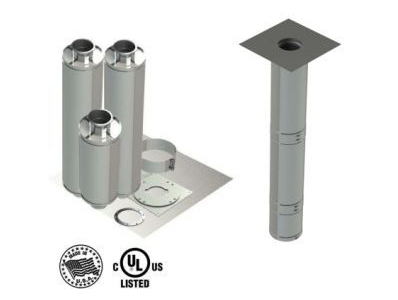

Double Wall Kit - Straight Duct
Please refer to the Duct Diameter sizing chart by Hood Size and CFMS.
Chart Diameters noted reflect interior dimensions.
-
10" - Double Wall Kit, Reduced Clearance, Grease Duct, 10' Straight, Including No Weld Hood and Fan Connections- Recommended Duct Sizes Heavy Duty Hood Lengths 3'-4'5'
- Recommended Duct Sizes Medium Duty Hood Lengths 3'-5' 5'
- Made in USA
- 2x J-600 Sealant
- 1x DW-NAKS-CK10-LSB-RC Light Support Band
- 1x DW-NAKS-CK10-APS-RC Anchor Plate Support
- 1x DW-NAKS-CK10-24L-RC 24" Fixed Length
- 1x DW-NAKS-CK10-24CL-RC 24" Cut Length
- 2x DW-NAKS-CK10-48L-RC 48" Fixed Length
- 1x DW-NAKS-CK10-NWHA-RC No-Weld Hood Adapter
- 1x DW-NAKS-CK10-FPE:29x29-RC Fan Plate Adapter - End
- 400 Series Outer Duct Jacket and Inner Jacket
- UL-1978 Listed
- Limited Lifetime Warranty
Orig.Price $2,851.30 Your Price $2,623.19 -
12" - Double Wall Kit, Reduced Clearance, Grease Duct, 10' Straight, Including No Weld Hood and Fan Connections- Recommended Duct Sizes Heavy Duty Hood Lengths 4'6" -5' 11'
- Recommended Duct Sizes Medium Duty Hood Lengths 5'6"-7'5
- Made in USA
- 2x J-600 Sealant
- 1x DW-NAKS-CK12-LSB-RC Light Support Band
- 1x DW-NAKS-CK12-APS-RC Anchor Plate Support
- 1x DW-NAKS-CK12-24L-RC 24" Fixed Length
- 1x DW-NAKS-CK12-24CL-RC 24" Cut Length
- 2x DW-NAKS-CK12-48L-RC 48" Fixed Length
- 1x DW-NAKS-CK12-NWHA-RC No-Weld Hood Adapter
- 1x DW-NAKS-CK12-FPE:29x29-RC Fan Plate Adapter - End
- 400 Series Outer Duct Jacket and Inner Jacket
- UL-1978 Listed
- Limited Lifetime Warranty
Orig.Price $3,237.37 Your Price $2,978.38 -
14" - Double Wall Kit, Reduced Clearance, Grease Duct, 10' Straight, Including No Weld Hood and Fan Connections- Recommended Duct Sizes Heavy Duty Hood Lengths 6'-7'11'
- Recommended Duct Sizes Medium Duty Hood Lengths 7'6"-9'11'
- Made in USA
- 2x J-600 Sealant
- 1x DW-NAKS-CK14-LSB-RC Light Support Band
- 1x DW-NAKS-CK14-APS-RC Anchor Plate Support
- 1x DW-NAKS-CK14-24L-RC 24" Fixed Length
- 1x DW-NAKS-CK14-24CL-RC 24" Cut Length
- 2x DW-NAKS-CK14-48L-RC 48" Fixed Length
- 1x DW-NAKS-CK14-NWHO-RC No-Weld Hood Adapter
- 1x DW-NAKS-CK14-FPE:29x29-RC Fan Plate Adapter - End
- 400 Series Outer Duct Jacket and Inner Jacket
- UL-1978 Listed
- Limited Lifetime Warranty
Orig.Price $3,652.91 Your Price $3,360.68 -
16" - Double Wall Kit, Reduced Clearance, Grease Duct, 10' Straight, Including No Weld Hood and Fan Connections- Recommended Duct Sizes Heavy Duty Hood Lengths 8'-9'11'
- Recommended Duct Sizes Medium Duty Hood Lengths 10'-10'11'
- Made in USA
- 2x J-600 Sealant
- 1x DW-NAKS-CK16-LSB-RC Light Support Band
- 1x DW-NAKS-CK16-APS-RC Anchor Plate Support
- 1x DW-NAKS-CK16-24L-RC 24" Fixed Length
- 1x DW-NAKS-CK16-24CL-RC 24" Cut Length
- 2x DW-NAKS-CK16-48L-RC 48" Fixed Length
- 1x DW-NAKS-CK16-NWHO-RC No-Weld Hood Adapter
- 1x DW-NAKS-CK16-FPE:29x29-RC Fan Plate Adapter - End
- 400 Series Outer Duct Jacket and Inner Jacket
- UL-1978 Listed
- Limited Lifetime Warranty
Orig.Price $3,932.36 Your Price $3,617.77
