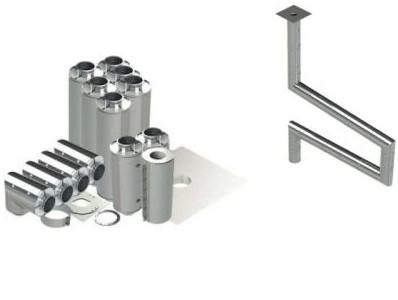

Double Wall Kit - Straight w 4 - 90's
Please refer to the Duct Diameter sizing chart by Hood Size and CFMS.
Chart Diameters noted reflect interior dimensions
-
10" - Double Wall Kit, Zero Clearance, Grease Duct, Four 90's, 50' Straight, Including No Weld Hood and Fan Connections- Recommended Duct Sizes Heavy Duty Hood Lengths 3'-4'5'
- Recommended Duct Sizes Medium Duty Hood Lengths 3'-5' 5'
- Made in USA
- 4x J-600 Sealant
- 10x DW-NAKS-CK10-LSB-ZC Light Support Band
- 2x DW-NAKS-CK10-APS-ZC Anchor Plate Support
- 1x DW-NAKS-CK10-18CL-ZC 18" Cut Length
- 13x DW-NAKS-CK10-36L-ZC 36" Fixed Length
- 2x DW-NAKS-CK10-36CL-ZC 36" Cut Length
- 2x DW-NAKS-CK10-IAD-ZC Inline Access Door Length
- 4x DW-NAKS-CK10-87EA-ZC 87 Degree Elbow w/ Access
- 1x DW-NAKS-CK10-NWHA-ZC No-Weld Hood Adapter
- 1x DW-NAKS-CK10-FPE:29x29-ZC Fan Plate Adapter - End
- 400 Series Outer Duct Jacket and Inner Jacket
- UL-1978/UL-2221 Listed
- Limited Lifetime Warranty
Orig.Price $15,544.32 Your Price $14,300.77 -
12" - Double Wall Kit, Zero Clearance, Grease Duct, Two 90's, 30' Straight, Including No Weld Hood and Fan Connections- Recommended Duct Sizes Heavy Duty Hood Lengths 4'6" -5' 11'
- Recommended Duct Sizes Medium Duty Hood Lengths 5'6"-7'5'
- Made in USA
- 4x J-600 Sealant
- 10x DW-NAKS-CK12-LSB-ZC Light Support Bandv
- 2x DW-NAKS-CK12-APS-ZC Anchor Plate Support
- 1x DW-NAKS-CK12-18CL-ZC 18" Cut Length
- 2x DW-NAKS-CK12-36CL-ZC 36" Cut Length
- 13x DW-NAKS-CK12-36L-ZC 36" Fixed Length
- 2x DW-NAKS-CK12-IAD-ZC Inline Access Door Length
- 4x DW-NAKS-CK12-87EA-ZC 87 Degree Elbow w/ Access
- 1x DW-NAKS-CK12-NWHA-ZC No-Weld Hood Adapter
- 1x DW-NAKS-CK12-FPE:29x29-ZC Fan Plate Adapter - End
- 400 Series Outer Duct Jacket and Inner Jacket
- UL-1978/UL-2221 Listed
- Limited Lifetime Warranty
Orig.Price $17,384.54 Your Price $15,993.77 -
14" - Double Wall Kit, Zero Clearance, Grease Duct, Four 90's, 50' Straight, Including No Weld Hood and Fan Connections- Recommended Duct Sizes Heavy Duty Hood Lengths 6'-7'11'
- Recommended Duct Sizes Medium Duty Hood Lengths 7'6"-9'11'
- Made in USA
- 5x J-600 Sealant
- 10x DW-NAKS-CK14-LSB-ZC Light Support Band
- 2x DW-NAKS-CK14-APS-ZC Anchor Plate Support
- 1x DW-NAKS-CK14-18CL-ZC 18" Cut Length
- 2x DW-NAKS-CK14-36CL-ZC 36" Cut Length
- 13x DW-NAKS-CK14-36L-ZC 36" Fixed Length
- 2x DW-NAKS-CK14-IAD-ZC Inline Access Door Length
- 4x DW-NAKS-CK14-87EA-ZC 87 Degree Elbow w/ Access
- 1x DW-NAKS-CK14-NWHO-ZC No-Weld Hood Adapter - Oval
- 1x DW-NAKS-CK14-FPE:29x29-ZC Fan Plate Adapter - End
- 400 Series Outer Duct Jacket and Inner Jacket
- UL-1978/UL-2221 Listed
- Limited Lifetime Warranty
Orig.Price $19,599.71 Your Price $18,031.73 -
16" - Double Wall Kit, Zero Clearance, Grease Duct, Four 90's, 50' Straight, Including No Weld Hood and Fan Connections- Recommended Duct Sizes Heavy Duty Hood Lengths 8'-9'11'
- Recommended Duct Sizes Medium Duty Hood Lengths 10'-10'11'
- Made in USA
- 4x J-600 Sealant
- 10x DW-NAKS-CK16-LSB-ZC Light Support Band
- 2x DW-NAKS-CK16-APS-ZC Anchor Plate Support
- 1x DW-NAKS-CK16-18CL-ZC 18" Cut Length
- 2x DW-NAKS-CK16-36CL-ZC 36" Cut Length
- 13x DW-NAKS-CK16-36L-ZC 36" Fixed Length
- 2x DW-NAKS-CK16-IAD-ZC Inline Access Door Length
- 4x DW-NAKS-CK16-87EA-ZC 87 Degree Elbow w/ Access
- 1x DW-NAKS-CK16-NWHO-ZC No-Weld Hood Adapter - Oval
- 1x DW-NAKS-CK16-FPE:29x29-ZC Fan Plate Adapter - End
- 400 Series Outer Duct Jacket and Inner Jacket
- UL-1978/UL-2221 Listed
- Limited Lifetime Warranty
Orig.Price $21,129.56 Your Price $19,439.20
