Electrical Control Box & DCV System

' . __('Add to Wish List') . ' Añadir para comparar
New

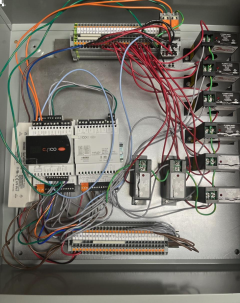

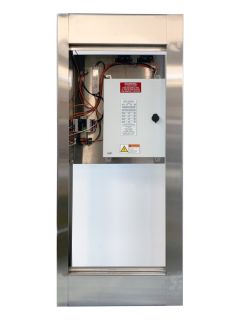

Electrical Control Box with Demand Control Ventilation-2 Exhaust/2 Supply 115V/230V
- 4 Fans up to 1HP, 115V/230V
- Prewired from factory
- For use with Fans with ECM (Electrically Commuted Motors) / Motors with VFD 0-10 VDC only
- Fire system activated which also turns off supply fan
- Each fan must be on it’s on circuit breaker and contactor
- Duct Thermostat(s)included
- Utility Cabinet
- UL Listed
- 1 Year Warranty
Orig.Price 1.932,37 $ Your Price 1.777,77 $

VIEW DETAILS
' . __('Add to Wish List') . ' Añadir para comparar
New

Electrical Control Box with Demand Control Ventilation-2 Exhaust/2 Supply 115V/230V
- Up to 4 Fans, 115V/230V
- Prewired from factory
- For use with Fans with ECM (Electrically Commuted Motors) / Motors with VFD with a 0-10 VDC input only
- Fire system activation turns-on Shunt Trip and Exhaust Fan(s) and turns-off Lights and Supply fan(s)
- Each fan must be on it’s own circuit breaker and contactor
- Duct Thermostat(s)included
- Utility Cabinet
- UL Listed
- 1 Year Warranty
Orig.Price 3.143,87 $ Your Price 2.892,37 $

VIEW DETAILS
' . __('Add to Wish List') . ' Añadir para comparar
New

Electrical Control Box with Demand Control Ventilation-4 Exhaust/4 Supply 115V/230V
- 8 Fans up to 1HP, 115V/230V
- Prewired from factory
- For use with Fans with ECM (Electrically Commuted Motors) / Motors with VFD 0-10 VDC only
- Fire system activated which also turns off supply fan
- Each fan must be on it’s on circuit breaker and contactor
- Includes 2 Pre-Wired Electrical Control Boxes
- Duct Thermostat(s)included
- Utility Cabinet
- UL Listed
- 1 Year Warranty
Orig.Price 2.901,57 $ Your Price 2.669,44 $

VIEW DETAILS
' . __('Add to Wish List') . ' Añadir para comparar
New

Electrical Control Box with Demand Control Ventilation-4 Exhaust/4 Supply 115V/230V
- Up to 8 Fans 115V/230V
- Prewired from factory
- For use with Fans with ECM (Electrically Commuted Motors) / Motors with VFD with a 0-10 VDC input only
- Fire system activation turns-on Shunt Trip and Exhaust Fan(s) and turns-off Lights and Supply fan(s)
- Each fan must be on it’s own circuit breaker and contactor
- Duct Thermostat(s) included
- Utility Cabinet
- UL Listed
- 1 Year Warranty
Orig.Price 4.113,07 $ Your Price 3.784,03 $

VIEW DETAILS

	ANSUL STANDARD SYSTEM	KIDDE SYSTEM	ANSUL SYSTEM DELUXE
FOOD TRUCKS HOODS	✓	✓	✓
CANOPY HOODS	✓	✓	✓
UL 300	✓	✓	✓
APPLIANCE SPECIFIC	✗	✓	✗
OVERLAP COVERAGE	✓	✗	✓
TANK	✓	✓	✓
GAS SHUT OFF VALVE	✗	✓	✓
CONTROL HEAD	✓	✓	✓
ENCLOSURE	✗	✗	✓
FIRE CHEMICAL	✗	✓	✓
C02 CARTRIDGE	✗	✓	✓
HOOD PIPING	✓	✓	✓
HOOD CONDUIT	✓	✓	✓
HOOD NOZZLES (APPLIANCE/DUCT/PLENUM)	✓	✓	✓
HOOD DETECTION BRACKETS	✓	✓	✓
MICRO SWITCH	✗	✓	✓
REMOTE PULL STATION	✓	✓	✓
FINAL HOOK UP	✗	✗	✗
PERMITS	✗	✗	✗
FINAL TEST	✗	✗	✗

Products	Inner Diameter (ID)	Outside Diameter (OD)	Clearance To Combustibles	Clearance To Non- Combustibles	Total Footprint
Single Wall	10 - 22"	ID	18"	0"	OD+Clearance
Double Wall Reduced Clearance	10"-14"	ID+2.5	2"	0"	OD+Clearance
Double Wall Reduced Clearance	16"-22"	ID+2.5	3"	0"	OD+Clearance
Double Wall Zero Clearance	10"-22"	ID+6.5	0"	0"	OD+Clearance

200 CFM/foot Medium Duty
Hood Length (ft.)	200 CFMS Linear FT.	Ductwork Dia.	Hood Conn. Dia.
3'-0" to 5'-5"	600-1075	10	10
5'-6" to 7'-5"	1100-1475	12	12
7'-6" to 9'-11"	1500-1975	14	14
10'-0" to 10'-11"	2000-2100	16	10(2)
11'-0" to 15'-5"	2200-3175	18	12(2)
15'-6" to 20'-0"	3100-4000	20	14(2)

250 CFM/foot Heavy Duty
Hood Length (ft).	250 CFMS/ Linear FT.	Ductwork Dia.	Hood Conn. Dia.
3'-0" to 4'-5"	750-1125	10	10
4'-6" to 5'-11"	1150-1475	12	12
6'-0" to 7'-11"	1500-1975	14	14
8'-0" to 9'-11"	2000-2475	16	10(2)
10'-0" to 11'-11"	2500-2975	18	12(2)
12'-0" to 15'-5"	3000-3850	20	14(2)
15'-6" to 20'-0"	3875-5000	22	16(2)

	FOOD TRUCKS HOODS	CANOPY HOODS	UL 300	APPLIANCE SPECIFIC	OVERLAP COVERAGE	TANK	GAS SHUT OFF VALVE	AUTOMAN ENCLOSURE	CHEMICAL	C02 CARTRIDGE	HOOD PIPING	HOOD CONDUIT	HOOD NOZZLES	HOOD DETECTION BRACKETS	FUSIBLE LINK DETECTORS	MICRO SWITCH	REMOTE PULL STATION
ANSUL PRE-PIPE FIRE SYSTEM DELUXE	✓	✓	✓	✓	✗	?	?	?	?	?	?	?	?	?	?	?	?
KIDDE FIRE SYSTEM	✓	✓	✓	✗	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
