Double Wall 14” Diameter

' . __('Add to Wish List') . ' Añadir para comparar
14" Diameter, Double Wall Reduced Clearance Grease Duct, Flange Collar Adapter - Start
- Constructed of UL 409 Stainless Steel
- Made in the USA
- Use with 14" Diameter Duct
- Ceramic fiber insulation between inner/outer jacket
- 400 Series outer duct jacket and inner jacket
- Recommended Duct Sizes Medium Duty Hood Lengths 7'6"-9'11"
- Recommended Duct Sizes Heavy Duty Hood Lengths 6'-7'11"
Orig.Price 134,02 $ Your Price 123,30 $

VIEW DETAILS
' . __('Add to Wish List') . ' Añadir para comparar

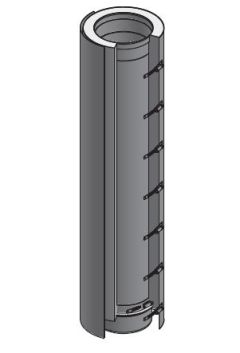

14" Diameter, Double Wall Reduced Clearance Grease Duct, 48" Cut Length
- Constructed of UL 409 Stainless Steel
- Made in USA
- Use with 14" Diameter Duct
- Recommended Duct Sizes Medium Duty Hood Lengths 5'6"-7'5"
- Recommended Duct Sizes Heavy Duty Hood Lengths 4'6"-5'11"
Orig.Price 571,31 $ Your Price 525,61 $

VIEW DETAILS
' . __('Add to Wish List') . ' Añadir para comparar
14" Diameter, Double Wall Reduced Clearance Grease Duct, 24" Cut Length
- Constructed of UL 409 Stainless Steel
- Made in USA
- Use with 14" Diameter Duct
- Recommended Duct Sizes Heavy Duty Hood Lengths 6'-7'11"
- Recommended Duct Sizes Medium Duty Hood Lengths 7'6"" -9' 11"
Orig.Price 376,19 $ Your Price 346,09 $

VIEW DETAILS
' . __('Add to Wish List') . ' Añadir para comparar
14" Diameter, Double Wall Reduced Clearance Grease Duct, Anchor Plate Support
- Constructed of UL 409 Stainless Steel
- Made in USA
- Use with 14" Diameter Duct
- Recommended Duct Sizes Heavy Duty Hood Lengths 6'-7'11"
- Recommended Duct Sizes Medium Duty Hood Lengths 7'6"" -9' 11"
Orig.Price 293,26 $ Your Price 269,79 $

VIEW DETAILS
' . __('Add to Wish List') . ' Añadir para comparar
14" Diameter, Double Wall Reduced Clearance Grease Duct, 24" Fixed Length
- Outer Wall Constructed of UL 304 Stainless Steel, Inner wall constructed of 400 Series Stainless
- 24" Fixed Length
- Made in USA
- Double Wall Reduced Clearance
- Recommended Duct Sizes Heavy Duty Hood Lengths 6'-7'11"
- Recommended Duct Sizes Medium Duty Hood Lengths 7'6"-9'11"
Orig.Price 376,19 $ Your Price 346,09 $

VIEW DETAILS
' . __('Add to Wish List') . ' Añadir para comparar
14" Diameter, Double Wall Reduced Clearance Grease Duct, 45 Degree Elbow w/ Access
- Outer Wall Constructed of UL 304 Stainless Steel, Inner wall constructed of 400 Series Stainless
- 45" Degree Elbow
- Made in USA
- Double Wall Reduced Clearance
- Access panel included-no tools required
- Recommended Duct Sizes Heavy Duty Hood Lengths 6'-7'11"
- Recommended Duct Sizes Medium Duty Hood Lengths 7'6"-9'11"
Orig.Price 941,41 $ Your Price 866,09 $

VIEW DETAILS
' . __('Add to Wish List') . ' Añadir para comparar
14" Diameter, Double Wall Reduced Clearance Grease Duct, 48" Fixed Length
- Outer Wall Constructed of UL 304 Stainless Steel, Inner wall constructed of 400 Series Stainless
- 48" Fixed Length
- Made in USA
- Double Wall Reduced Clearance
- Recommended Duct Sizes Heavy Duty Hood Lengths 6'-7'11"
- Recommended Duct Sizes Medium Duty Hood Lengths 7'6"-9'11"
Orig.Price 571,31 $ Your Price 525,61 $

VIEW DETAILS
' . __('Add to Wish List') . ' Añadir para comparar
14" Diameter, Double Wall Reduced Clearance Grease Duct, 87 Degree Elbow w/ Access Panel
- Outer Wall Constructed of UL 304 Stainless Steel, Inner wall constructed of 400 Series Stainless
- 87 Degree Elbow
- Made in USA
- Double Wall Reduced Clearance
- Access panel attached with wing nuts
- Recommended Duct Sizes Heavy Duty Hood Lengths 6'-7'11"
- Recommended Duct Sizes Medium Duty Hood Lengths 7'6" -9'11"
Orig.Price 1.019,37 $ Your Price 937,82 $

VIEW DETAILS
' . __('Add to Wish List') . ' Añadir para comparar
14" Diameter, Double Wall Reduced Clearance Grease Duct, Fan Plate Adapter - End
- Constructed of UL 304 Stainless Steel
- 29" x 29" square plate
- Can be cut to size during installation
- Made in USA
- Cut to curb size
- Recommended Duct Sizes Heavy Duty Hood Lengths 6'-7'11"
- Recommended Duct Sizes Medium Duty Hood Lengths 7'6"" -9' 11"
Orig.Price 560,29 $ Your Price 515,46 $

VIEW DETAILS
' . __('Add to Wish List') . ' Añadir para comparar
14" Diameter, Double Wall Reduced Clearance Grease Duct, Inline Access Door Length
- Constructed of UL 304 Stainless Steel
- No tools required
- Made in USA
- Double Wall Reduced Clearance
- Access panel attached with wing nuts
- Recommended Duct Sizes Heavy Duty Hood Lengths 6'-7'11"
- Recommended Duct Sizes Medium Duty Hood Lengths 7'6"" -9' 11"
Orig.Price 742,71 $ Your Price 683,29 $

VIEW DETAILS
' . __('Add to Wish List') . ' Añadir para comparar
14" Diameter, Double Wall Reduced Clearance Grease Duct, Light Support Band
- Constructed of UL 304 Stainless Steel
- Bracket to support hanging or vertical duct
- Made in USA
- Recommended every 15' for diameters 10"–14"
- Recommended Duct Sizes Heavy Duty Hood Lengths 6'-7'11"
- Recommended Duct Sizes Medium Duty Hood Lengths 7'6"-9'11"
Orig.Price 138,14 $ Your Price 127,09 $

VIEW DETAILS
' . __('Add to Wish List') . ' Añadir para comparar
14" Diameter, Double Wall Reduced Clearance Grease Duct, No Weld Hood Adapter - Start
- Outer Wall Constructed of UL 304 Stainless Steel, Inner wall constructed of 400 Series Stainless
- No welding required to install to hood
- Made in USA
- Double Wall Reduced Clearance
- Includes bolts and high teperature gasket
- Recommended Duct Sizes Heavy Duty Hood Lengths 6'-7'11"
- Recommended Duct Sizes Medium Duty Hood Lengths 7'6"-9'11"
Orig.Price 539,88 $ Your Price 496,68 $

VIEW DETAILS
' . __('Add to Wish List') . ' Añadir para comparar
Sealant for flue Gas Temp up to 600F
- Sealant for flue Gas Temp up to 600F
- Non-Slumping will not sag or run.
- Made in USA
- Designed for sealing and bonding applications.
Orig.Price 72,27 $ Your Price 66,48 $

VIEW DETAILS

	ANSUL STANDARD SYSTEM	KIDDE SYSTEM	ANSUL SYSTEM DELUXE
FOOD TRUCKS HOODS	✓	✓	✓
CANOPY HOODS	✓	✓	✓
UL 300	✓	✓	✓
APPLIANCE SPECIFIC	✗	✓	✗
OVERLAP COVERAGE	✓	✗	✓
TANK	✓	✓	✓
GAS SHUT OFF VALVE	✗	✓	✓
CONTROL HEAD	✓	✓	✓
ENCLOSURE	✗	✗	✓
FIRE CHEMICAL	✗	✓	✓
C02 CARTRIDGE	✗	✓	✓
HOOD PIPING	✓	✓	✓
HOOD CONDUIT	✓	✓	✓
HOOD NOZZLES (APPLIANCE/DUCT/PLENUM)	✓	✓	✓
HOOD DETECTION BRACKETS	✓	✓	✓
MICRO SWITCH	✗	✓	✓
REMOTE PULL STATION	✓	✓	✓
FINAL HOOK UP	✗	✗	✗
PERMITS	✗	✗	✗
FINAL TEST	✗	✗	✗

Products	Inner Diameter (ID)	Outside Diameter (OD)	Clearance To Combustibles	Clearance To Non- Combustibles	Total Footprint
Single Wall	10 - 22"	ID	18"	0"	OD+Clearance
Double Wall Reduced Clearance	10"-14"	ID+2.5	2"	0"	OD+Clearance
Double Wall Reduced Clearance	16"-22"	ID+2.5	3"	0"	OD+Clearance
Double Wall Zero Clearance	10"-22"	ID+6.5	0"	0"	OD+Clearance

200 CFM/foot Medium Duty
Hood Length (ft.)	200 CFMS Linear FT.	Ductwork Dia.	Hood Conn. Dia.
3'-0" to 5'-5"	600-1075	10	10
5'-6" to 7'-5"	1100-1475	12	12
7'-6" to 9'-11"	1500-1975	14	14
10'-0" to 10'-11"	2000-2100	16	10(2)
11'-0" to 15'-5"	2200-3175	18	12(2)
15'-6" to 20'-0"	3100-4000	20	14(2)

250 CFM/foot Heavy Duty
Hood Length (ft).	250 CFMS/ Linear FT.	Ductwork Dia.	Hood Conn. Dia.
3'-0" to 4'-5"	750-1125	10	10
4'-6" to 5'-11"	1150-1475	12	12
6'-0" to 7'-11"	1500-1975	14	14
8'-0" to 9'-11"	2000-2475	16	10(2)
10'-0" to 11'-11"	2500-2975	18	12(2)
12'-0" to 15'-5"	3000-3850	20	14(2)
15'-6" to 20'-0"	3875-5000	22	16(2)

	FOOD TRUCKS HOODS	CANOPY HOODS	UL 300	APPLIANCE SPECIFIC	OVERLAP COVERAGE	TANK	GAS SHUT OFF VALVE	AUTOMAN ENCLOSURE	CHEMICAL	C02 CARTRIDGE	HOOD PIPING	HOOD CONDUIT	HOOD NOZZLES	HOOD DETECTION BRACKETS	FUSIBLE LINK DETECTORS	MICRO SWITCH	REMOTE PULL STATION
ANSUL PRE-PIPE FIRE SYSTEM DELUXE	✓	✓	✓	✓	✗	?	?	?	?	?	?	?	?	?	?	?	?
KIDDE FIRE SYSTEM	✓	✓	✓	✗	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
