Kit de pared simple - recto con pierna de pantalón

Please refer to the Duct Diameter sizing chart by Hood Size and CFMS.

' . __('Add to Wish List') . ' Añadir para comparar

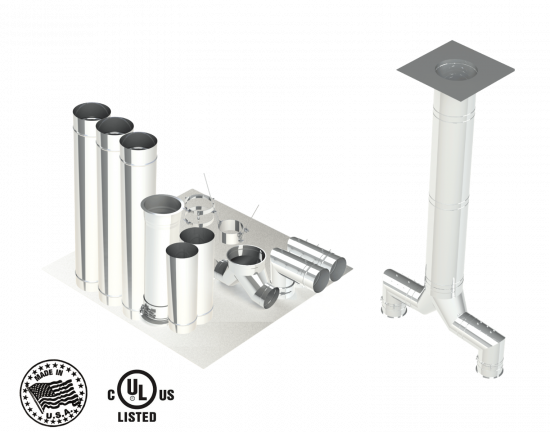

18"- Single Wall Kit,Two 12" Connections, Grease Duct, 10' Straight, Including No Weld Hood and Fan Connections
- Recommended Duct Sizes Heavy Duty Hood Lengths 10'-11'11'
- Recommended Duct Sizes Medium Duty Hood Lengths 11'-15'5'
- Made in USA
- No weld hood and fan adapters
- 87 Degree Reduction Bull-Head Tee
- 3x 36" Fixed Lengths
- 2x 18" Cut Lengths
- 1x 24" Adjustable Lengths
- 2x Support Bands
- 2x 87 Degree Elbows with Access
- 1x KLC Installation Clamp
- KL Assembly Paste
- 6x 12LB Locking Bands
- 5x 18LB Locking Bands
- J-600 Sealant
- 304 Stainless Steel
- UL1978 Listed
- Limited Lifetime Warranty
Orig.Price 3.290,94 $ Your Price 3.027,67 $

VIEW DETAILS
' . __('Add to Wish List') . ' Añadir para comparar
20"- Single Wall Kit,Two 14" Connections, Grease Duct, 10' Straight, Including No Weld Hood and Fan Connections
- Recommended Duct Sizes Heavy Duty Hood Lengths 12'-15'5'
- Recommended Duct Sizes Medium Duty Hood Lengths 15'6"-20'
- Made in USA
- 3x J-600 Sealant
- 2x SW-NAKS-CK20-LSB Light Support Band
- 2x SW-NAKS-CK14-CLB Cut Length Band
- 1x SW-NAKS-CK20-CLB Cut Length Band
- 2x SW-NAKS-CK14-24L 24" Fixed Length
- 1x SW-NAKS-CK20-24L 24" Fixed Length
- 3x SW-NAKS-CK20-48L 48" Fixed Length
- 2x SW-NAKS-CK14-87EA 87 Degree Elbow w/ Access
- 1x SW-NAKS-CK20-87BHT14 87 Degree Reduction Bull-Head Tee
- 2x SW-NAKS-CK14-NWHO No-Weld Hood Adapter
- 1x SW-NAKS-CK20-FPE:36X36 Fan Plate Adapter - End
- 400 Stainless Steel
- UL1978 Listed
- Limited Lifetime Warranty
Orig.Price 3.969,75 $ Your Price 3.652,18 $

VIEW DETAILS
' . __('Add to Wish List') . ' Añadir para comparar
22"- Single Wall Kit,Two 16" Connections, Grease Duct, 10' Straight, Including No Weld Hood and Fan Connections
- Recommended Duct Sizes Heavy Duty Hood Lengths 15'6"-20'
- No weld hood and fan adapters
- Made in USA
- 3x J-600 Sealant
- 2x SW-NAKS-CK22-LSB Light Support Band
- 2x SW-NAKS-CK16-CLB Cut Length Band
- 1x SW-NAKS-CK22-CLB Cut Length Band
- 2x SW-NAKS-CK16-24L 24" Fixed Length
- 1x SW-NAKS-CK22-24L 24" Fixed Length
- 3x SW-NAKS-CK22-48L 48" Fixed Length
- 2x SW-NAKS-CK16-87EA 87 Degree Elbow w/ Access
- 1x SW-NAKS-CK22-87BHT16 87 Deg Reduction Bull-Head Tee
- 2x SW-NAKS-CK16-NWHO No-Weld Hood Adapter
- 1x SW-NAKS-CK22-FPE:36X36 Fan Plate Adapter - End
- 400 Stainless Steel
- UL1978 Listed
- Limited Lifetime Warranty
Orig.Price 4.343,28 $ Your Price 3.995,81 $

VIEW DETAILS

Kit de pared simple - recto con pierna de pantalón

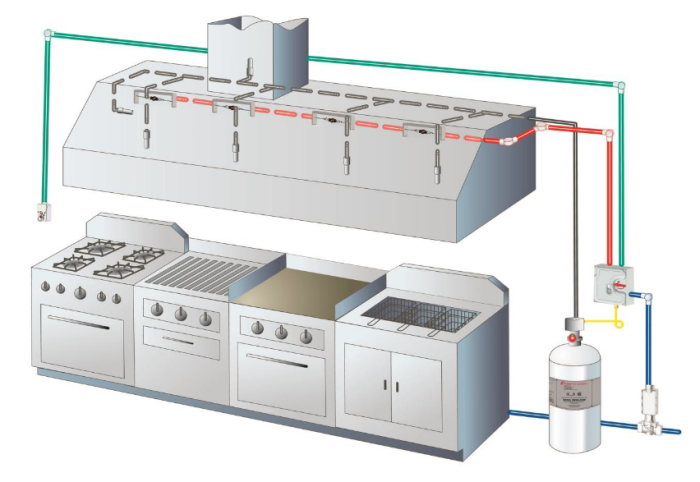

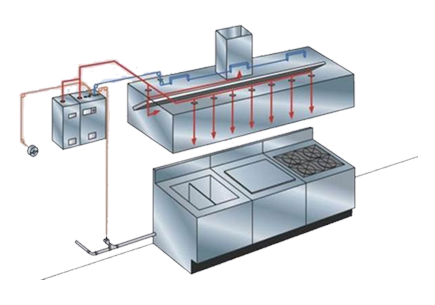

	ANSUL STANDARD SYSTEM	KIDDE SYSTEM	ANSUL SYSTEM DELUXE
FOOD TRUCKS HOODS	✓	✓	✓
CANOPY HOODS	✓	✓	✓
UL 300	✓	✓	✓
APPLIANCE SPECIFIC	✗	✓	✗
OVERLAP COVERAGE	✓	✗	✓
TANK	✓	✓	✓
GAS SHUT OFF VALVE	✗	✓	✓
CONTROL HEAD	✓	✓	✓
ENCLOSURE	✗	✗	✓
FIRE CHEMICAL	✗	✓	✓
C02 CARTRIDGE	✗	✓	✓
HOOD PIPING	✓	✓	✓
HOOD CONDUIT	✓	✓	✓
HOOD NOZZLES (APPLIANCE/DUCT/PLENUM)	✓	✓	✓
HOOD DETECTION BRACKETS	✓	✓	✓
MICRO SWITCH	✗	✓	✓
REMOTE PULL STATION	✓	✓	✓
FINAL HOOK UP	✗	✗	✗
PERMITS	✗	✗	✗
FINAL TEST	✗	✗	✗

Products	Inner Diameter (ID)	Outside Diameter (OD)	Clearance To Combustibles	Clearance To Non- Combustibles	Total Footprint
Single Wall	10 - 22"	ID	18"	0"	OD+Clearance
Double Wall Reduced Clearance	10"-14"	ID+2.5	2"	0"	OD+Clearance
Double Wall Reduced Clearance	16"-22"	ID+2.5	3"	0"	OD+Clearance
Double Wall Zero Clearance	10"-22"	ID+6.5	0"	0"	OD+Clearance

200 CFM/foot Medium Duty
Hood Length (ft.)	200 CFMS Linear FT.	Ductwork Dia.	Hood Conn. Dia.
3'-0" to 5'-5"	600-1075	10	10
5'-6" to 7'-5"	1100-1475	12	12
7'-6" to 9'-11"	1500-1975	14	14
10'-0" to 10'-11"	2000-2100	16	10(2)
11'-0" to 15'-5"	2200-3175	18	12(2)
15'-6" to 20'-0"	3100-4000	20	14(2)

250 CFM/foot Heavy Duty
Hood Length (ft).	250 CFMS/ Linear FT.	Ductwork Dia.	Hood Conn. Dia.
3'-0" to 4'-5"	750-1125	10	10
4'-6" to 5'-11"	1150-1475	12	12
6'-0" to 7'-11"	1500-1975	14	14
8'-0" to 9'-11"	2000-2475	16	10(2)
10'-0" to 11'-11"	2500-2975	18	12(2)
12'-0" to 15'-5"	3000-3850	20	14(2)
15'-6" to 20'-0"	3875-5000	22	16(2)

	FOOD TRUCKS HOODS	CANOPY HOODS	UL 300	APPLIANCE SPECIFIC	OVERLAP COVERAGE	TANK	GAS SHUT OFF VALVE	AUTOMAN ENCLOSURE	CHEMICAL	C02 CARTRIDGE	HOOD PIPING	HOOD CONDUIT	HOOD NOZZLES	HOOD DETECTION BRACKETS	FUSIBLE LINK DETECTORS	MICRO SWITCH	REMOTE PULL STATION
ANSUL PRE-PIPE FIRE SYSTEM DELUXE	✓	✓	✓	✓	✗	?	?	?	?	?	?	?	?	?	?	?	?
KIDDE FIRE SYSTEM	✓	✓	✓	✗	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓

FINANCING AVAILABLE

CLICK HERE For More Details

Kit de pared simple - recto con pierna de pantalón

WELCOME

START YOUR PROJECT »

CHOOSE CATEGORY

Worktables

Shelving

Counters & Cabinets

Dish Tables

Sinks

Food Shields

Expo Lines & Serving Lines

Request a Quote

SELECT PRODUCTS

WELCOME TO OUR SHOP

PROJECT DETAILS

MANAGE PROJECTS

CURRENT PROJECT

PROJECT NAME :

PREVIOUS PROJECTS

Thank you forcreating your project withNorth American Kitchen Solutions!

Account Login

Shop by

FINANCING AVAILABLE

CLICK HERE For More Details

Let Us Help You!

BACKGROUND

LEARN MORE

GARANTIZADO PARA PASAR TODOS LOS CODIGOS! ¡COINCIDIREMOS CON LOS PRECIOS DE CUBIERTA DE CUALQUIER COMPETIDOR!

SISTEMAS DE CAMPANAS Y ACCESORIOS

RESTAURANTE CAMPANAS DE ESCAPE POR TIPO

INFORMACIÓN Y DOCUMENTACIÓN

EXPLORE HOODMART®

Hood Builder

TYPE 1

TYPE 2

Choosing the right size

Type 1 - Hood Equipment

Hood Style - Type 1

Hood Model

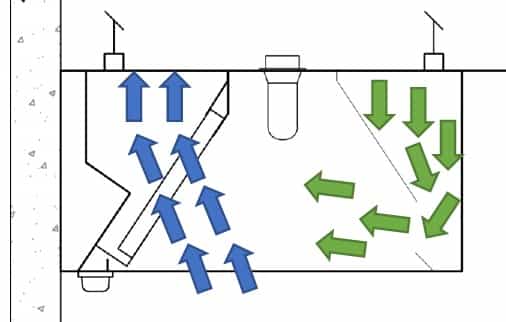

Short Cycle

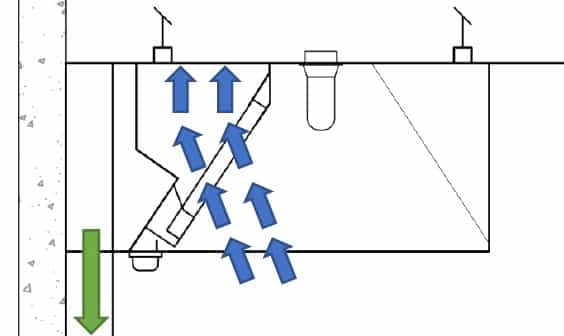

BRP

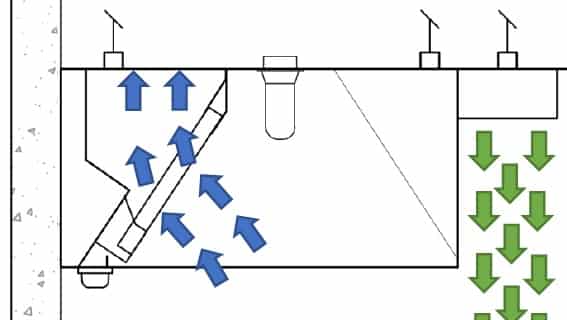

PSP

Fire Suppression

Pre-Piped System

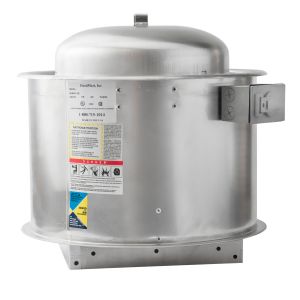

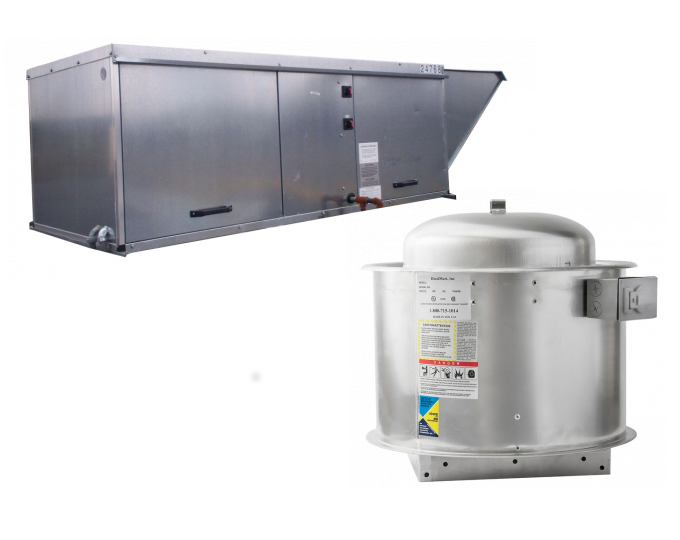

Fans(s)

Type

TYPE 1

TYPE 2

Size

Choosing the right size

EQUIPMENT

Type 1Type 2 - Hood Equipment

Style

Hood Style -Type 1Type 2

Model

Hood Model

Short Cycle

BRP

PSP

Fire

Fire Suppression

Fans

Fans(s)

Ductwork

Available upon request - Contact us

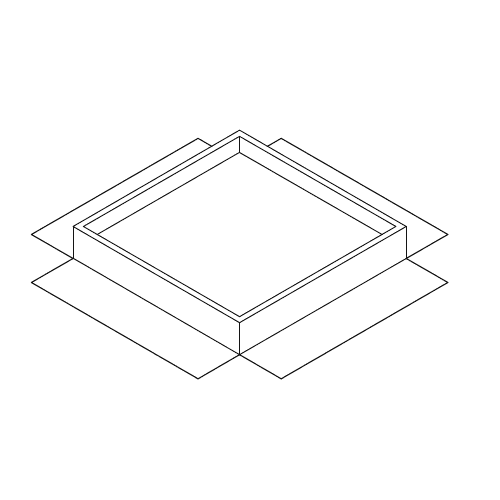

Curb
