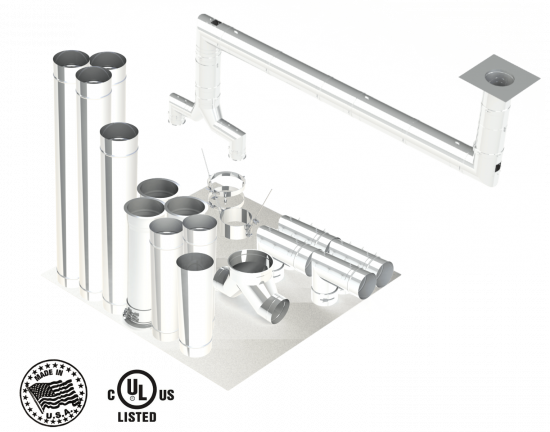

Kit de pared simple - Straight w / Pant Leg y 2 - 90's

Please refer to the Duct Diameter sizing chart by Hood Size and CFMS.

' . __('Add to Wish List') . ' Añadir para comparar
22"- Single Wall Kit,Two 16" Connections, Grease Duct, Two 90's, 30' Straight, Including No Weld Hood and Fan Connections Fan Connections
- Recommended Duct Sizes Heavy Duty Hood Lengths 15'6"-20'
- Made in USA
- 5x J-600 Sealant
- 6x SW-NAKS-CK22-LSB Light Support Band
- 2x SW-NAKS-CK16-CLB Cut Length Band
- 3x SW-NAKS-CK22-CLB Cut Length Band
- 2x SW-NAKS-CK16-24L 24" Fixed Length
- 5x SW-NAKS-CK22-24L 24" Fixed Length
- 5x SW-NAKS-CK22-48L 48" Fixed Length
- 1x SW-NAKS-CK22-IAD Inline Access Door Length
- 2x SW-NAKS-CK16-87EA 87 Degree Elbow w/ Access
- 2x SW-NAKS-CK22-87EA 87 Degree Elbow w/ Access
- 1x SW-NAKS-CK22-87BHT16 87 Deg Reduction Bull-Head Tee
- 2x SW-NAKS-CK16-NWHO No-Weld Hood Adapter
- 1x SW-NAKS-CK22-FPE:36X36 Fan Plate Adapter - End
- 400 Stainless Steel
- UL1978 Listed
- Limited Lifetime Warranty
Orig.Price 8.142,54 $ Your Price 7.491,13 $

VIEW DETAILS
' . __('Add to Wish List') . ' Añadir para comparar
20"- Single Wall Kit,Two 14" Connections, Grease Duct, Two 90's, 30' Straight, Including No Weld Hood and Fan Connections Fan Connections
- Recommended Duct Sizes Heavy Duty Hood Lengths 12'-15'5"
- Recommended Duct Sizes Medium Duty Hood Lengths 15'6"-20'
- Made in USA
- 5x J-600 Sealant
- 6x SW-NAKS-CK20-LSB Light Support Band
- 2x SW-NAKS-CK14-CLB Cut Length Band
- 3x SW-NAKS-CK20-CLB Cut Length Band
- 2x SW-NAKS-CK14-24L 24" Fixed Length
- 5x SW-NAKS-CK20-24L 24" Fixed Length
- 5x SW-NAKS-CK20-48L 48" Fixed Length
- 1x SW-NAKS-CK20-IAD Inline Access Door Length
- 2x SW-NAKS-CK14-87EA 87 Degree Elbow w/ Access
- 2x SW-NAKS-CK20-87EA 87 Degree Elbow w/ Access
- 1x SW-NAKS-CK20-87BHT14 87 Deg Reduction Bull-Head Tee
- 2x SW-NAKS-CK14-NWHO No-Weld Hood Adapter
- 1x SW-NAKS-CK20-FPE:36X36 Fan Plate Adapter - End
- 400 Stainless Steel
- UL1978 Listed
- Limited Lifetime Warranty
Orig.Price 7.346,88 $ Your Price 6.759,12 $

VIEW DETAILS
' . __('Add to Wish List') . ' Añadir para comparar
18"- Single Wall Kit,Two 12" Connections, Grease Duct, Two 90's, 30' Straight, Including No Weld Hood and Fan Connections Fan Connections
- Recommended Duct Sizes Heavy Duty Hood Lengths 10'-11'11"
- Recommended Duct Sizes Medium Duty Hood Lengths 11'-15'5"
- Made in USA
- 5x J-600 Sealant
- 6x SW-NAKS-CK18-LSB Light Support Band
- 2x SW-NAKS-CK12-CLB Cut Length Band
- 3x SW-NAKS-CK18-CLB Cut Length Band
- 2x SW-NAKS-CK12-24L 24" Fixed Length
- 5x SW-NAKS-CK18-24L 24" Fixed Length
- 4x SW-NAKS-CK18-48L 48" Fixed Length
- 1x SW-NAKS-CK18-IAD Inline Access Door Length
- 2x SW-NAKS-CK12-87EA 87 Degree Elbow w/ Access
- 2x SW-NAKS-CK18-87EA 87 Degree Elbow w/ Access
- 1x SW-NAKS-CK18-87BHT12 87 Degree Reduction Bull-Head Tee
- 2x SW-NAKS-CK12-NWHA No-Weld Hood Adapter
- 1x SW-NAKS-CK18-FPE:36X36 Fan Plate Adapter - End
- 400 Stainless Steel
- UL1978 Listed
- Limited Lifetime Warranty
Orig.Price 6.386,32 $ Your Price 5.875,41 $

VIEW DETAILS

Kit de pared simple - Straight w / Pant Leg y 2 - 90's

	ANSUL STANDARD SYSTEM	KIDDE SYSTEM	ANSUL SYSTEM DELUXE
FOOD TRUCKS HOODS	✓	✓	✓
CANOPY HOODS	✓	✓	✓
UL 300	✓	✓	✓
APPLIANCE SPECIFIC	✗	✓	✗
OVERLAP COVERAGE	✓	✗	✓
TANK	✓	✓	✓
GAS SHUT OFF VALVE	✗	✓	✓
CONTROL HEAD	✓	✓	✓
ENCLOSURE	✗	✗	✓
FIRE CHEMICAL	✗	✓	✓
C02 CARTRIDGE	✗	✓	✓
HOOD PIPING	✓	✓	✓
HOOD CONDUIT	✓	✓	✓
HOOD NOZZLES (APPLIANCE/DUCT/PLENUM)	✓	✓	✓
HOOD DETECTION BRACKETS	✓	✓	✓
MICRO SWITCH	✗	✓	✓
REMOTE PULL STATION	✓	✓	✓
FINAL HOOK UP	✗	✗	✗
PERMITS	✗	✗	✗
FINAL TEST	✗	✗	✗

Products	Inner Diameter (ID)	Outside Diameter (OD)	Clearance To Combustibles	Clearance To Non- Combustibles	Total Footprint
Single Wall	10 - 22"	ID	18"	0"	OD+Clearance
Double Wall Reduced Clearance	10"-14"	ID+2.5	2"	0"	OD+Clearance
Double Wall Reduced Clearance	16"-22"	ID+2.5	3"	0"	OD+Clearance
Double Wall Zero Clearance	10"-22"	ID+6.5	0"	0"	OD+Clearance

200 CFM/foot Medium Duty
Hood Length (ft.)	200 CFMS Linear FT.	Ductwork Dia.	Hood Conn. Dia.
3'-0" to 5'-5"	600-1075	10	10
5'-6" to 7'-5"	1100-1475	12	12
7'-6" to 9'-11"	1500-1975	14	14
10'-0" to 10'-11"	2000-2100	16	10(2)
11'-0" to 15'-5"	2200-3175	18	12(2)
15'-6" to 20'-0"	3100-4000	20	14(2)

250 CFM/foot Heavy Duty
Hood Length (ft).	250 CFMS/ Linear FT.	Ductwork Dia.	Hood Conn. Dia.
3'-0" to 4'-5"	750-1125	10	10
4'-6" to 5'-11"	1150-1475	12	12
6'-0" to 7'-11"	1500-1975	14	14
8'-0" to 9'-11"	2000-2475	16	10(2)
10'-0" to 11'-11"	2500-2975	18	12(2)
12'-0" to 15'-5"	3000-3850	20	14(2)
15'-6" to 20'-0"	3875-5000	22	16(2)

	FOOD TRUCKS HOODS	CANOPY HOODS	UL 300	APPLIANCE SPECIFIC	OVERLAP COVERAGE	TANK	GAS SHUT OFF VALVE	AUTOMAN ENCLOSURE	CHEMICAL	C02 CARTRIDGE	HOOD PIPING	HOOD CONDUIT	HOOD NOZZLES	HOOD DETECTION BRACKETS	FUSIBLE LINK DETECTORS	MICRO SWITCH	REMOTE PULL STATION
ANSUL PRE-PIPE FIRE SYSTEM DELUXE	✓	✓	✓	✓	✗	?	?	?	?	?	?	?	?	?	?	?	?
KIDDE FIRE SYSTEM	✓	✓	✓	✗	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
