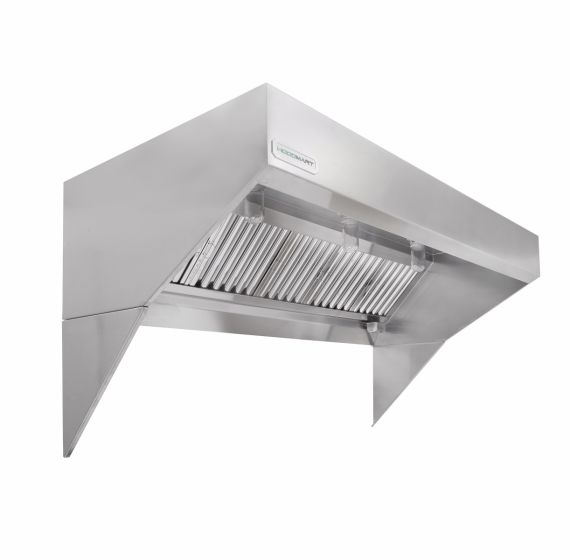

Low Ceiling Sloped Front Wall Canopy Hood w/Makeup Air
SKU:
2048HLBM

Need Fire Suppression?

HoodMart Commercial Hood are Guaranteed To Pass ALL City & State Codes.
Quality Restaurant Hood You Can Trust, Quick Delivery... NSF, UL, NFPA & ETL APPROVED...

Worried about installation? Building Permits? State or City Codes? No problem.
Concerned about working with Inspectors? No Problem.
The HoodMart Team can coordinate your installation, saving you valuable time and $.

SERVING restaurant owners, architects, contractors, and professional installers Nationwide!

Your 20' x 48" Low Ceiling Sloped Front Wall Canopy Hood w/Makeup Air Includes:

  • Filters
  • Pre-Wired Light(s)
  • New 304 Stainless (IPS) Internal Perforated Supply Plenum
  • Made in USA
  • Stainless Grease Cup(s)
  • Hanging Brackets


See more exhaust hood pictures on Pinterest...

Low Ceiling Sloped Front Wall Canopy Hood w/Makeup Air Features

  • Constructed with 18 Gauge 430 SS
  • All joints are welded liquid tight, without seams by an automatic wire fed mig welder
  • All hoods are built in accordance to NFPA 96, NSF specifications, & U.L. 710 specifications
  • Grease trough is made to receive grease extracted by filters
  • Grease filters are baffle type (20’’ wide), U.L. listed and made of light weight aluminum steel
  • A stainless steel cup attaches to the tray that runs beneath the entire length of the hood

Makeup-Air Hoods - Overview

This exclusive short cycle make up air (compensating hood) is a not only a superior product for removing grease laden vapors but also replaces air without any negative air pressure in the kitchen. This design allows you to use a fresh air makeup air fan. A costly tempered unit is not required as you are introducing the air into the hood not into the room. More comfortable configuration for employees in the kitchen as it maintains temperature and does not blow down on their heads as they cook and prepare food.

HoodMart also offers heating and cooling makeup air options if required. HoodMart Tempered MUA units are complete in every aspect, with all necessary gas and electrical controls included. Attractive standard features as well as numerous options and accessories insure maximum design flexibility and application versatility. Airflow rates from 800 to 13,000 CFMs with 100% fresh air heated by either Natural or LP gas. Evaporative Cooling and Heat/Cool combination units are available.

HoodMart manufactures makeup air hoods for all types of kitchen applications always with the customer’s needs and wants in mind. Manufacturing a variety of Makeup Hood styles: Compensating (Short Cycle), Perforated Supply Plenum PSP, Back Return Supply Plenum BSP, and even an Exhaust option using diffusers in the ceiling.
