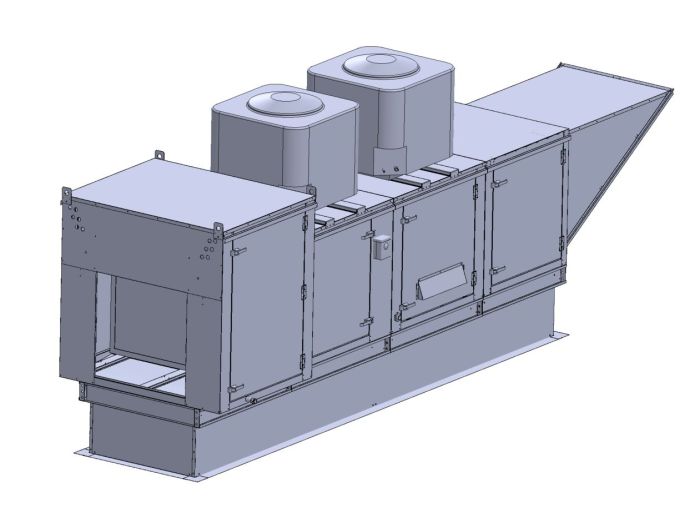

TK1-DX-1PH - DIRECT GAS FIRED TEMPERED MAKEUP AIR UNIT/DX
Gas-Fired Tempered Make-Up Air Unit with Direct Expansion/Maximum 1,850 CFM's, 208/230V, 1-Phase with Motorized Damper and a 10" Blower
- Gas-Fired Tempered Make-Up Air Unit with Direct Expansion handles a Maximum of 1,850 CFM's @ 0.5" wg ESP
- Max Temperature Rise of 100 Deg F. 129,600 BTU's, Natural Gas/LP Burner
- 5 Ton, Dual Circuit DX Cooling
- Adjustable CFM Range 1800-1850
- Fully Packaged Unit with 14 SEER Condensing Unit(s)
- 2.000 HP, 1 Phase, 208/230V, 60 Hz, ODP (Open Drip Proof)
- 10" Blower
- Motorized Back-Draft Damper
- Curb Mount
- Curb Insulation Available
- 24 month parts-only warranty
- Recommended for hood Sizes 4-12
Features
- Sloped Screened Intake with Washable Metal Mesh Filters
- Discharge Temperature Control - 40-90 degree F (4-32 degree C)
- Made in USA
- 3/4"" Gas Line Manifold Constructed in Conformance to ANSI Standards
- 24 month parts-only warranty
- Heavy Gauge Stainless Steel Condensate Pans
Overview
Direct Gas-Fired Heater, for use in tempering make-up air. Packages are certified to the ANSI Z83.4a-2001/CSA 3.7a-2001 combined safety standard. One size is available with a max BTU rate of 270,000 and 1,850 CFM. Housing constructed of heavy duty G90 galvanized steel • Forward curved centrifugal blower wheel • Vibration isolation • Adjustable drive assemblies • Adjustable motor mount • Ball bearing motors • Heavy duty, pre-lubricated bearings rated for 200,000 hours of operation • Service doors on both sides • Horizontal & down discharge • Large intake area ensures low pressure drop across unit • Spring loaded profile plates automatically adjust for any airflow - no manual setting required! • Weatherproof safety disconnect switch • Modular design provides design flexibility • Fully insulated casing With DX cooling, refrigerant flows through the evaporator coils to absorb heat, thus cooling and dehumidifying the air. A compressor moves the coolant through the coils and a condenser removes the absorbed heat for exhaust outside
