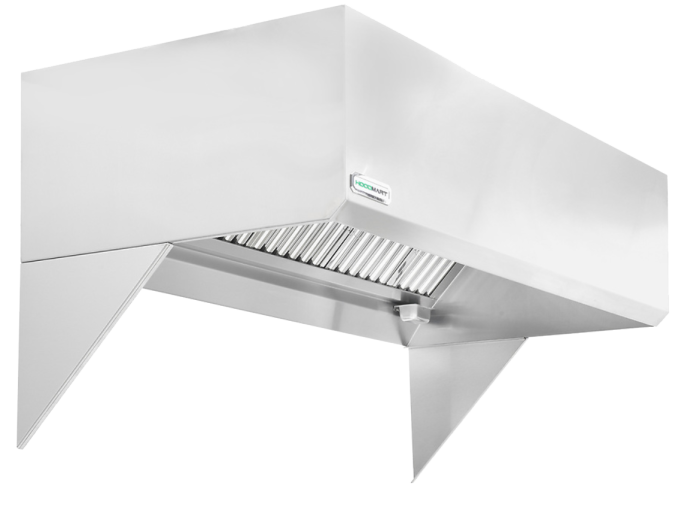

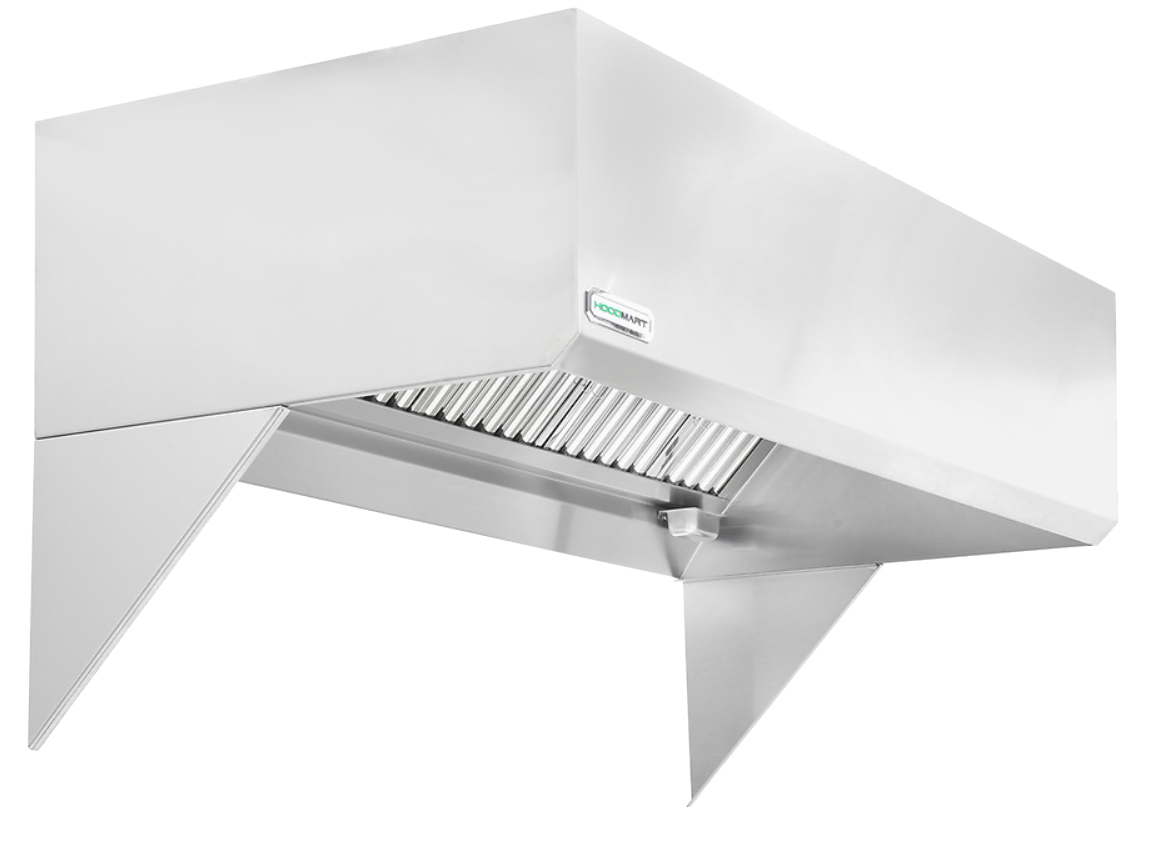

Restaurant Hood w/ Makeup-Air
SKU:
1348HBM

Need Fire Suppression?

HoodMart Commercial Hood are Guaranteed To Pass ALL City & State Codes.
Quality Makeup Air Hoods You Can Trust, Quick Delivery... NSF, UL, NFPA & ETL APPROVED...

Worried about installation? Building Permits? State or City Codes? No problem.
Concerned about working with Inspectors? No Problem.
The HoodMart Team can coordinate your installation, saving you valuable time and $.

SERVING restaurant owners, contractors, architects and professional installers nationwide!


Your Restaurant Hood Includes:

  • Filters
  • Pre-Wired Light(s)
  • New 304 Stainless (IPS) Internal Perforated Supply Plenum
  • Made in USA
  • Stainless Grease Cup(s)
  • Hanging Brackets


See more exhaust hood pictures on Pinterest...


Restaurant Hood Features

  • 13 FT Hood System
  • All commercial kitchen makeup air hoods are constructed of 18 gauge steel
  • All joints are welded liquid tight, without seams by an automatic wire fed mig welder
  • All hoods are built in accordance to NFPA 96, NSF specifications, & U.L. 710 specifications
  • Grease trough is made to receive grease extracted by filters
  • Grease filters are baffle type (20’’ wide), U.L. listed and made of light weight aluminum steel
  • A stainless steel cup attaches to the tray that runs beneath the entire length of the hood

Makeup-Air Hoods - Overview

Our short cycle make up air (compensating hood) is not only a superior product in removing grease laden vapors from the air but also replacing the air without causing negative air pressure in the kitchen. This design allows you to use a fresh air makeup air fan. A costly tempered unit is not required as you are introducing the air into the hood not into the room. This allows for the comfort of the employees working in the kitchen to maintain a comfortable temperature for working and does not have hot air blowing down on their head as they are cooking and preparing food.

However, HoodMart manufactures hoods to work for all kitchen applications with the customer’s needs and wants in mind. This is why we manufacture a variety of commercial kitchen makeup air hoods: Compensating (Short Cycle), Perforated Supply Plenum PSP, Back Return Supply Plenum BSP, and you can even use an Exhaust option with using diffusers in the ceiling.

HoodMart also offers heating and cooling makeup air options if required. HoodMart Tempered MUA units are complete in every aspect, with all necessary gas and electrical controls included. Attractive standard features as well as numerous options and accessories insure maximum design flexibility and application versatility. Airflow rates from 800 to 13,000 CFMs with 100% fresh air heated by either Natural or LP gas. Evaporative Cooling and Heat/Cool combination units are available.

LET US HELP YOU

Help | How Can We Help You

How Can We Help You?

What Type of Hood Do You Need?

Help | Experts Are Ready to Help You

Experts Are Ready to Help You:

Custom Size Hoods

Ship in 5-7 Business Days.

Talk To A Specialist

Factory Support For All Questions.

CALL 24/7 1.800.715.1014

Restaurant Hood w/ Makeup-Air

SKU:
1348HBM
Orig.Price 4.175,04 $ Your Price 3.841,04 $

Availability: In stock, ready to be shipped

Shipping Estimator

EXTRAS

Comprueba los artículos para añadir a la cesta o
Disponible
Restaurant Hood w/ Makeup-Air 1348HBM COMPRAR, CAMPANA SOLAMENTE, Campanas de aire de maquillaje, Ciclo Corto Maquillaje Aire, Standard Short Cycle
Restaurant Hood w/ Makeup-Air 1348HBM COMPRAR, CAMPANA SOLAMENTE, Campanas de aire de maquillaje, Ciclo Corto Maquillaje Aire, Standard Short CycleRestaurant Hood w/ Makeup-Air 1348HBM COMPRAR, CAMPANA SOLAMENTE, Campanas de aire de maquillaje, Ciclo Corto Maquillaje Aire, Standard Short CycleRestaurant Hood w/ Makeup-Air 1348HBM COMPRAR, CAMPANA SOLAMENTE, Campanas de aire de maquillaje, Ciclo Corto Maquillaje Aire, Standard Short CycleRestaurant Hood w/ Makeup-Air 1348HBM COMPRAR, CAMPANA SOLAMENTE, Campanas de aire de maquillaje, Ciclo Corto Maquillaje Aire, Standard Short CycleRestaurant Hood w/ Makeup-Air 1348HBM COMPRAR, CAMPANA SOLAMENTE, Campanas de aire de maquillaje, Ciclo Corto Maquillaje Aire, Standard Short Cycle

Need Fire Suppression?

HoodMart Commercial Hood are Guaranteed To Pass ALL City & State Codes.
Quality Makeup Air Hoods You Can Trust, Quick Delivery... NSF, UL, NFPA & ETL APPROVED...

Worried about installation? Building Permits? State or City Codes? No problem.
Concerned about working with Inspectors? No Problem.
The HoodMart Team can coordinate your installation, saving you valuable time and $.

SERVING restaurant owners, contractors, architects and professional installers nationwide!


Your Restaurant Hood Includes:

  • Filters
  • Pre-Wired Light(s)
  • New 304 Stainless (IPS) Internal Perforated Supply Plenum
  • Made in USA
  • Stainless Grease Cup(s)
  • Hanging Brackets


See more exhaust hood pictures on Pinterest...


Restaurant Hood Features

  • 13 FT Hood System
  • All commercial kitchen makeup air hoods are constructed of 18 gauge steel
  • All joints are welded liquid tight, without seams by an automatic wire fed mig welder
  • All hoods are built in accordance to NFPA 96, NSF specifications, & U.L. 710 specifications
  • Grease trough is made to receive grease extracted by filters
  • Grease filters are baffle type (20’’ wide), U.L. listed and made of light weight aluminum steel
  • A stainless steel cup attaches to the tray that runs beneath the entire length of the hood

Makeup-Air Hoods - Overview

Our short cycle make up air (compensating hood) is not only a superior product in removing grease laden vapors from the air but also replacing the air without causing negative air pressure in the kitchen. This design allows you to use a fresh air makeup air fan. A costly tempered unit is not required as you are introducing the air into the hood not into the room. This allows for the comfort of the employees working in the kitchen to maintain a comfortable temperature for working and does not have hot air blowing down on their head as they are cooking and preparing food.

However, HoodMart manufactures hoods to work for all kitchen applications with the customer’s needs and wants in mind. This is why we manufacture a variety of commercial kitchen makeup air hoods: Compensating (Short Cycle), Perforated Supply Plenum PSP, Back Return Supply Plenum BSP, and you can even use an Exhaust option with using diffusers in the ceiling.

HoodMart also offers heating and cooling makeup air options if required. HoodMart Tempered MUA units are complete in every aspect, with all necessary gas and electrical controls included. Attractive standard features as well as numerous options and accessories insure maximum design flexibility and application versatility. Airflow rates from 800 to 13,000 CFMs with 100% fresh air heated by either Natural or LP gas. Evaporative Cooling and Heat/Cool combination units are available.
