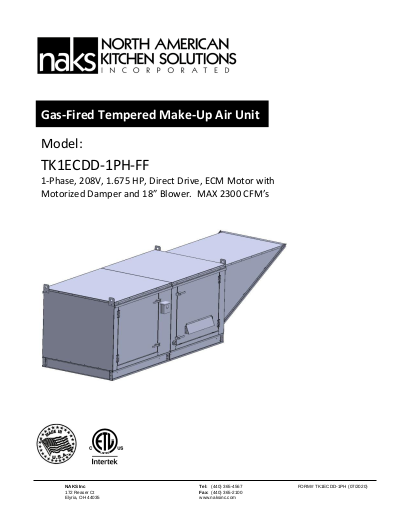

TK1ECDD- 1 PH Direct Drive Direct Gas Fired Heated Makeup Air Unit-2300 CFM
- Supply fan handles a Maximum of 2,300 CFM's @ 0.5" wg ESP
- Max Temperature Rise of 100 Deg F. 248,400 BTU's, Natural Gas/LP Burner
- 1.675 HP, 1 Phase, 208/230V, 60 Hz, ODP-ECM (Open Drip Proof Electronically Commutated Motor)
- 18" Blower
- Motorized Back-Draft Damper
- Curb or Indoor Hanging Cradle (Hanging Rods by Others)
- 2 Year Parts Only Warranty.
Features
- Sloped Screened Intake with Washable Metal Mesh Filters
- Discharge Temperature Control - 40-90 degree F (4-32 degree C)
- 3/4" Gas Line Manifold Constructed in Conformance to ANSI Standards
- 2 Year Parts Only Warranty.
LET US HELP YOU

How Can We Help You?
What Type of Hood Do You Need?

Experts Are Ready to Help You:
Custom Size Hoods
Ship in 5-7 Business Days.
TK1ECDD- 1 PH Direct Drive Direct Gas Fired Heated Makeup Air Unit-2300 CFM
TK1ECDD- 1 PH Direct Drive Direct Gas Fired Heated Makeup Air Unit-2300 CFM
- Supply fan handles a Maximum of 2,300 CFM's @ 0.5" wg ESP
- Max Temperature Rise of 100 Deg F. 248,400 BTU's, Natural Gas/LP Burner
- 1.675 HP, 1 Phase, 208/230V, 60 Hz, ODP-ECM (Open Drip Proof Electronically Commutated Motor)
- 18" Blower
- Motorized Back-Draft Damper
- Curb or Indoor Hanging Cradle (Hanging Rods by Others)
- 2 Year Parts Only Warranty.
Features
- Sloped Screened Intake with Washable Metal Mesh Filters
- Discharge Temperature Control - 40-90 degree F (4-32 degree C)
- 3/4" Gas Line Manifold Constructed in Conformance to ANSI Standards
- 2 Year Parts Only Warranty.
