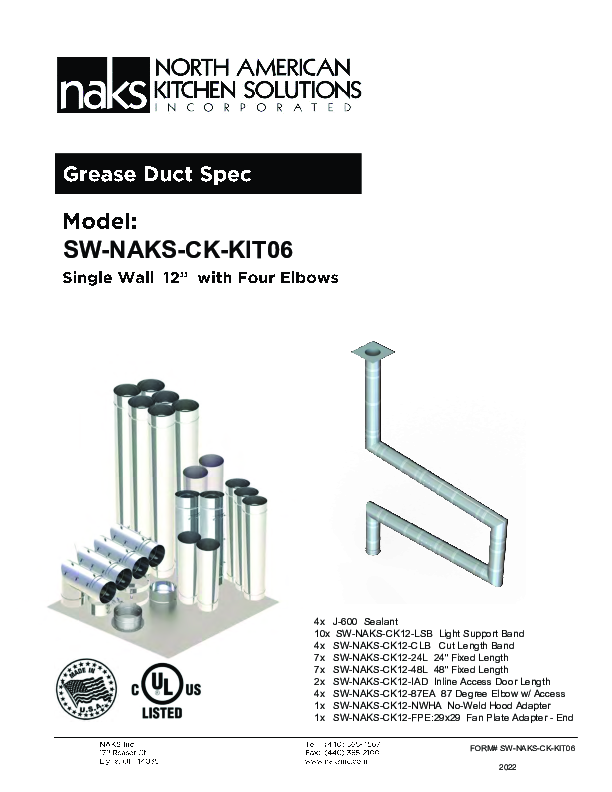

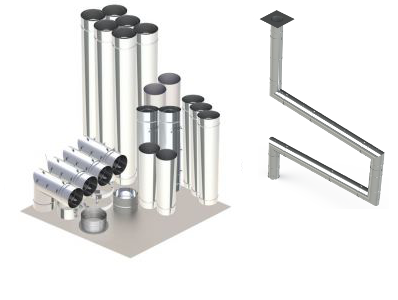

12" - Single Wall Kit, Grease Duct, Four 90's, 50' Straight, Including No Weld Hood and Fan Connections
SKU:
SWNAKS-KIT06

12" - Single Wall, Four 90's, 50' Straight, Including No Weld Hood and Fan Connections


Ductwork Includes:

  • Recommended Duct Sizes Heavy Duty Hood Lengths 4'6" -5' 11'
  • Recommended Duct Sizes Medium Duty Hood Lengths 5'6"-7'5'
  • No weld hood and fan adapters
  • 6x 48" Fixed Length
  • 1x 36" Fixed Length
  • 3x 24" Fixed Length
  • 4x 24" Cut Lengths
  • 9x Support Bands
  • 4x 87 Degree Elbows
  • 1x KLC Installation Clamp
  • 23x 12LB Locking Bands
  • KL Assembly Paste
  • 2x Inline Access Doors
  • 304 Stainless Steel
  • UL1978 Listed
  • Limited Lifetime Warranty

Features

  • UL-1978 Listed Grease Duct
  • 300 Series Stainless steel construction
  • Made in USA
  • Conical connections on 8 through 16
  • Overlapping flange connections 18 and above
  • Field cuttable and telescoping lengths
  • Limited Lifetime Warranty

Overview

HoodMart Grease Ducts. MADE IN USA and constructed of all stainless steel. UL-1978 Listed for direct competitiveness against single wall field-welded steel. Conforms to the requirements of NFPA-96. Optional Double Wall Zero Clearance UL-2221. Factory-Built Enclosure listing as an alternate to two layers of field-applied insulation.
