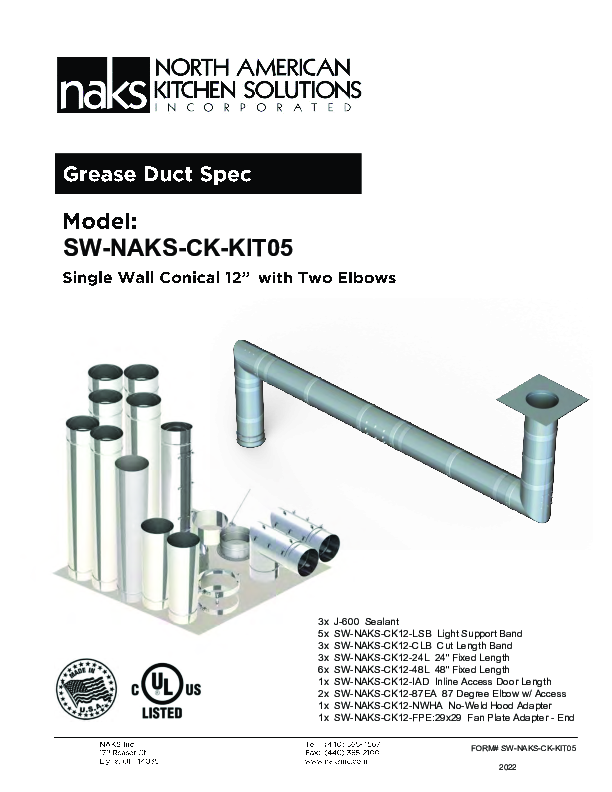

12" - Single Wall Kit, Grease Duct, Two 90's, 30' Straight, Including No Weld Hood and Fan Connections
SKU:
SWNAKS-KIT05

12" - Single Wall, Two 90's, 30' Straight, Including No Weld Hood and Fan Connections


Ductwork Includes:

  • Recommended Duct Sizes Heavy Duty Hood Lengths 4'6" -5' 11'
  • Recommended Duct Sizes Medium Duty Hood Lengths 5'6"-7'5'
  • No weld hood and fan adapters
  • 4x 48" Fixed Lengths
  • 2x 36" Fixed Lengths
  • 3x 24" Cut Lengths
  • 4x Support Bands
  • 2x 87 Degree Elbows with Access
  • 1x KLC Installation Clamp
  • 14x 12LB Locking Bands
  • KL Assembly Paste
  • 1x Inline Access Door
  • 304 Stainless Steel
  • UL1978 Listed
  • Limited Lifetime Warranty

Features

  • UL-1978 Listed Grease Duct
  • 300 Series Stainless steel construction
  • Made in USA
  • Conical connections on 8 through 16
  • Overlapping flange connections 18 and above
  • Field cuttable and telescoping lengths
  • Limited Lifetime Warranty

Overview

HoodMart Grease Ducts. MADE IN USA and constructed of all stainless steel. UL-1978 Listed for direct competitiveness against single wall field-welded steel. Conforms to the requirements of NFPA-96. Optional Double Wall Zero Clearance UL-2221. Factory-Built Enclosure listing as an alternate to two layers of field-applied insulation.

LET US HELP YOU

How Can We Help You?

What Type of Hood Do You Need?

Experts Are Ready to Help You:

Custom Size Hoods

Ship in 5-7 Business Days.

Talk To A Specialist

Factory Support For All Questions.

CALL 24/7 1.800.715.1014

12" - Single Wall Kit, Grease Duct, Two 90's, 30' Straight, Including No Weld Hood and Fan Connections

SKU:
SWNAKS-KIT05
Original Price $3,050.23 Your Price $2,806.21
Loading...
Shipping Estimator
In stock
12" -  Single Wall Kit, Grease Duct, Two 90's, 30' Straight, Including No Weld Hood and Fan Connections
12" -  Single Wall Kit, Grease Duct, Two 90's, 30' Straight, Including No Weld Hood and Fan Connections 12" -  Single Wall Kit, Grease Duct, Two 90's, 30' Straight, Including No Weld Hood and Fan Connections

12" - Single Wall, Two 90's, 30' Straight, Including No Weld Hood and Fan Connections


Ductwork Includes:

  • Recommended Duct Sizes Heavy Duty Hood Lengths 4'6" -5' 11'
  • Recommended Duct Sizes Medium Duty Hood Lengths 5'6"-7'5'
  • No weld hood and fan adapters
  • 4x 48" Fixed Lengths
  • 2x 36" Fixed Lengths
  • 3x 24" Cut Lengths
  • 4x Support Bands
  • 2x 87 Degree Elbows with Access
  • 1x KLC Installation Clamp
  • 14x 12LB Locking Bands
  • KL Assembly Paste
  • 1x Inline Access Door
  • 304 Stainless Steel
  • UL1978 Listed
  • Limited Lifetime Warranty

Features

  • UL-1978 Listed Grease Duct
  • 300 Series Stainless steel construction
  • Made in USA
  • Conical connections on 8 through 16
  • Overlapping flange connections 18 and above
  • Field cuttable and telescoping lengths
  • Limited Lifetime Warranty

Overview

HoodMart Grease Ducts. MADE IN USA and constructed of all stainless steel. UL-1978 Listed for direct competitiveness against single wall field-welded steel. Conforms to the requirements of NFPA-96. Optional Double Wall Zero Clearance UL-2221. Factory-Built Enclosure listing as an alternate to two layers of field-applied insulation.
