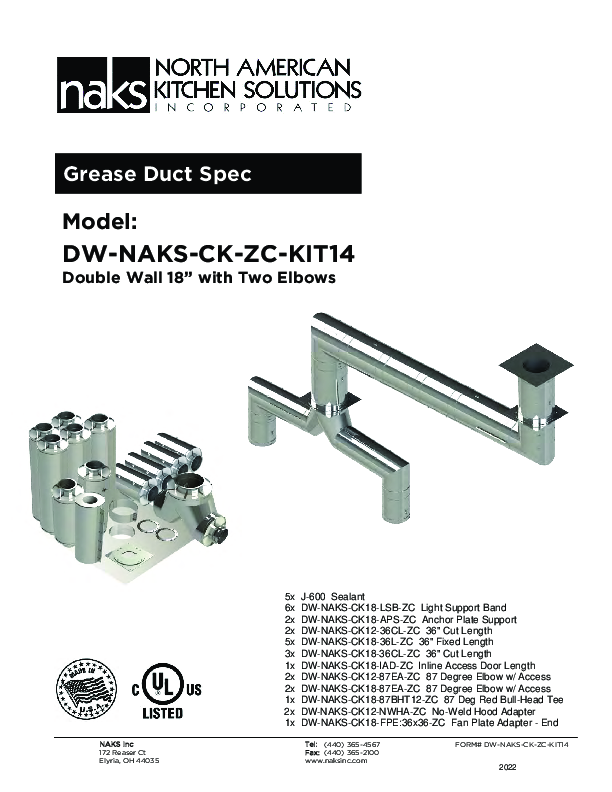

18"- Double Wall Kit, Zero Clearance, Two 12" Connections, Grease Duct, Two 90's, 30' Straight, Including No Weld Hood and Fan Connections Fan Connections
SKU:
DWNAKS-KIT14

DUCTWORK INCLUDES:

  • Recommended Duct Sizes Heavy Duty Hood Lengths 10'-11'11'
  • Recommended Duct Sizes Medium Duty Hood Lengths 11'-15'5'
  • 87 Degree Reduction Bull-Head Tee
  • 5 x 36" Fixed Lengths
  • 2x 24" Fixed Lengths
  • 2 x 12" Fixed Lengths
  • 3x 24" Adjustable Lengths
  • 1x Inline Access Door
  • 1 X Plate Support
  • 4x Elbows with Access
  • 6x Support Bands
  • 6x 12LB Locking Bands
  • 6 x V Bands
  • 3 x J-600 Sealant
  • 300 Series Outer Duct Jacket/400 Series Inner Jacket
  • UL1978/UL2221 Listed
  • Limited Lifetime Warranty

FEATURES:

  • Double Wall Zero Clearance
  • UL-1978 /UL2221 Listed Grease Duct
  • Made in USA
  • 300 Series Stainless steel construction
  • Overlapping flange connections
  • Adjustable lengths
  • 300 Series Stainless Outer layer
  • 400 Series Stainless inner layer
  • Ceramic fiber insulation between inner/outer jacket
  • Limited Lifetime Warranty

DUCTWORK OVERVIEW

HoodMart Grease Ducts. MADE IN USA and constructed of all stainless steel. UL-1978 Listed for direct competitiveness against single wall field-welded steel. Conforms to the requirements of NFPA-96. Double Wall Zero Clearance is UL2221 and UL1978 Listed. The Double Wall Zero Clearance models are two-hour rated resistant enclosure/duct assembly and can be used as an alternative to the two layers of field applied insulation.
