Restaurant Hood System w/(BRP) Back Return Plenum Makeup-Air 9'x48"
SKU:
2009BRP

Restaurant Hood System w/(BRP) Back Return Plenum Makeup-Air 9'x48"

SKU:
2009BRP
Original Price $3,825.00 Your Price $3,549.00
Loading...
Shipping Estimator

EXTRAS

Check items to add to the cart or
In stock
Restaurant Hood System w/(BRP) Back Return Plenum Makeup-Air 9'x48"
Restaurant Hood System w/(BRP) Back Return Plenum Makeup-Air 9'x48" Restaurant Hood System w/(BRP) Back Return Plenum Makeup-Air 9'x48" Restaurant Hood System w/(BRP) Back Return Plenum Makeup-Air 9'x48" Restaurant Hood System w/(BRP) Back Return Plenum Makeup-Air 9'x48"

"You've found the perfect restaurant makeup air hood. The HoodMart SUPPORT Team will answer ALL your exhaust hood questions and remove fear or confusion about your commercial kitchen ventilation needs. This HoodMart Make-Up hood system is a Type 1, Wall Canopy Hood that includes a BRP (Back Return Plenum) and Guaranteed To Pass ALL City & State Codes. Quality Hoods You Can Trust, Quick Delivery... NSF, UL, NFPA & ETL APPROVED! Designed for use over cooking surface temperatures of 450, 600, 700 degrees. HoodMart offers an optional low profile hood to accomodate low ceiling applications."

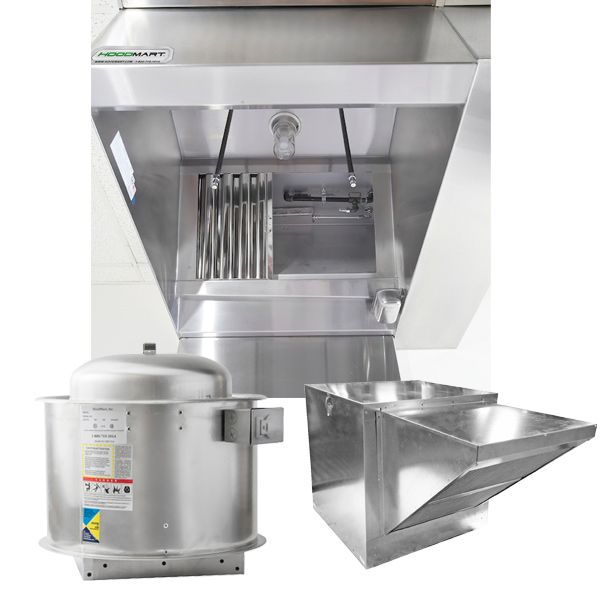

Your Restaurant Hood System w/(BRP) Back Return Plenum Makeup-Air 9'x48" Include:

  • Constructed 18 gauge 430 Stainless Steel Where Exposed
  • 6" BRP (Back Return Plenum)
  • Stainless Steel UL Listed Grease Baffle Filters
  • Exhaust Fan (1pc) 28D 2250 CFM, 115V
  • Variable Speed Control
  • Supply Fan (1pc) SF7 Untempered 1800 CFM, .250 SP, 230V, 60HZ
  • Mounting Curb Wall / Roof (2pcs)
  • Pre-Wired Light(s)
  • Stainless Grease Cup(s)
  • Hanging Brackets
  • Built in 3" Air Gap


See more exhaust hood pictures on Pinterest...




Hood System Overview

Our Type 1 Hood is designed for use over cooking equipment to remove heat, smoke and grease laden vapors. The make-up air hood with BRP (Back Return Plenum) introduces the supply air thru the back of the hood and discharges into the room under the cooking equipment.
