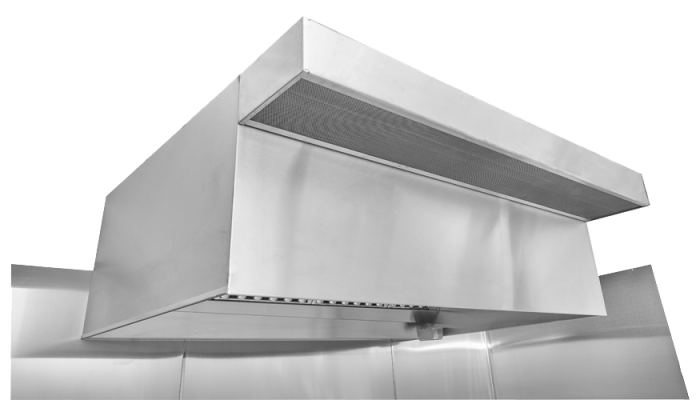

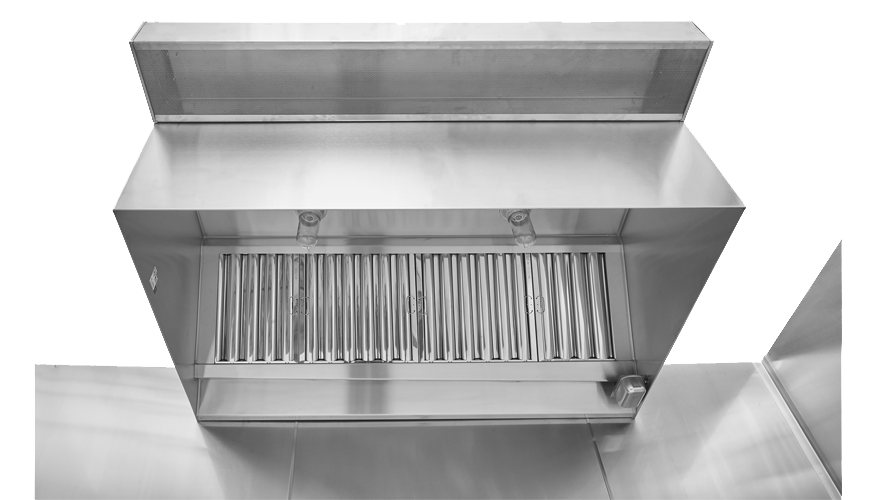

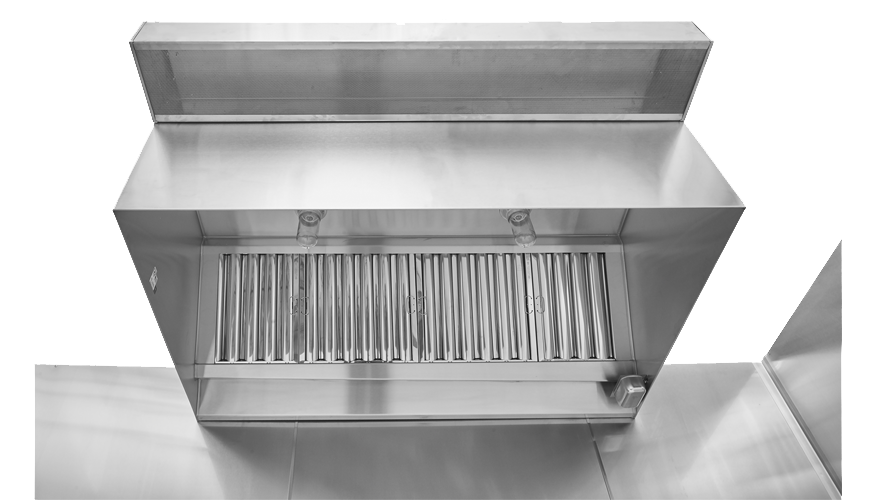

Restaurant Hood System w/ PSP Makeup-Air 11'x48"
Pre-Pipe Fire System 9'-12'Price: $2800.00
Electrical Control Package -UL listed - 2 Exhaust/2 SupplyPrice: $705.00
Stainless Wall Panels w/ Seam Strips & End Caps (4'L x 84"H)Price: $250.00
DUCT THERMOSTATPrice: $185.00
Grease Extractor Exhaust Fans 28" WallPrice: $50.00
Hinge KitPrice: $50.00
Grease Extractor Exhaust Fans - 28" RoofPrice: $50.00
Electrical Control -UL listed - 1 Exhaust/1 SupplyPrice: $625.00
FIRE WRAPPrice: $375.00
Side Curtains - Full (Pair)Price: $250.00
Side Curtains - Half (Pair)Price: $200.00
Spark Arrestor Filter - 20 x 20Price: $99.00
Spark Arrestor Filter - 20 x 16Price: $97.00
Switch PanelPrice: $50.00
20” x 20” x 2” Stainless Steel Hood FilterPrice: $38.00
Variable Speed Control - Exhaust Fans 6 AMPPrice: $38.00
PWLGT - Pre-Wired Light comes with light globePrice: $35.00
20” x 16” x 2” Stainless Steel Hood FilterPrice: $33.00
GLOBE - Thermal and Shock Resistant Light GlobesPrice: $18.00
GREASE CUPPrice: $15.00
Seam StripsPrice: $15.00
END CAPSPrice: $11.00
You've found the perfect restaurant makeup air hood. The HoodMart SUPPORT Team will answer ALL your exhaust hood questions and remove fear or confusion about your commercial kitchen ventilation needs. This HoodMart Make-Up hood system is a Type 1, Wall Canopy Hood that includes a PSP (Perforated Supply Plenum) and Guaranteed To Pass ALL City & State Codes. Quality Hoods You Can Trust, Quick Delivery... NSF, UL, NFPA & ETL APPROVED! Designed for use over cooking surface temperatures of 450, 600, 700 degrees. HoodMart offers an optional low profile hood to accomodate low ceiling applications.
Your Restaurant Hood System w/ PSP Makeup-Air 11'x48" Include:
- Exhaust Fan (1pc)
- Supply Fan (1pc) Direct Gas Fired Heated (Tempered)
- Mounting Curb Wall / Roof (2pcs)
- Pre-Wired Light(s)
- Stainless Grease Cup(s)
- Hanging Brackets
- Built in 3" Air Gap
- PSP (Perforated Supply Plenum)
See more exhaust hood pictures on Pinterest...
Restaurant Hood System w/ PSP Makeup-Air 11'x48" Features
- 11 x 48 Hood System w/PSP (Perforated Supply Plenum
- Constructed with 18 Gauge 430 SS (#3 Polish)
- 1 Year Warranty
- Built in 3" Air Gap on back of hood
- Optional Low Profile Hood style available
- Exhaust Fan w/ Curb
- Direct Gas Fired Heated (TEMPERED) Make Up Air Fan w/Curb
- All hoods are UL Listed to Ansi/UL 710, and CAN/ULCAll hoods are
Hood System Overview
Our Type 1 Hood is designed for use over cooking equipment to remove heat, smoke and grease laden vapors. The make-up air hood with PSP (Perforated Supply Plenum) allows you to use a fresh air fan or a Heated (Tempered) make-up air fan. Upcharge required
