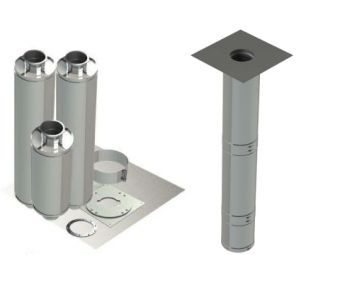

10" - Double Wall Kit, Zero Clearance, Grease Duct, 10' Straight, Including No Weld Hood and Fan Connections
SKU:
DWNAKS-ZC-KIT01
DUCTWORK INCLUDES:
- Recommended Duct Sizes Heavy Duty Hood Lengths 3'-4'5'
- Recommended Duct Sizes Medium Duty Hood Lengths 3'-5' 5'
- 2x J-600 Sealant
- 1x DW-NAKS-CK10-LSB-ZC Light Support Band
- 1x DW-NAKS-CK10-APS-ZC Anchor Plate Support
- 1x DW-NAKS-CK10-18CL-ZC 18" Cut Length
- 3x DW-NAKS-CK10-36L-ZC 36" Fixed Length
- 1x DW-NAKS-CK10-NWHA-ZC No-Weld Hood Adapter
- 1x DW-NAKS-CK10-FPE:29x29-ZC Fan Plate Adapter - End
- 400 Series Outer Duct Jacket and Inner Jacket
- UL-1978/UL-2221 Listed
- Limited Lifetime Warranty
FEATURES:
- UL-1978 /UL-2221 listed grease duct
- Made in USA
- 400 Series outer duct jacket and inner jacket
- Overlapping flange connections
- Field cuttable fixed lengths
- Ceramic fiber insulation between inner/outer jacket
- Limited Lifetime Warranty
DUCTWORK OVERVIEW
HoodMart Grease Ducts. MADE IN USA and constructed of all stainless steel. UL-1978 Listed for direct competitiveness against single wall field-welded steel. Conforms to the requirements of NFPA-96. Double Wall Zero Clearance is UL-2221 and UL-1978 Listed. The Double Wall Zero Clearance models are two-hour rated resistant enclosure/duct assembly and can be used as an alternative to the two layers of field applied insulation.
LET US HELP YOU
How Can We Help You?
What Type of Hood Do You Need?
Experts Are Ready to Help You:
Custom Size Hoods
Ship in 5-7 Business Days.
10" - Double Wall Kit, Zero Clearance, Grease Duct, 10' Straight, Including No Weld Hood and Fan Connections
SKU:
DWNAKS-ZC-KIT01
Orig.Price $3,050.58 Your Price $2,806.53
Shipping Estimator
DUCTWORK INCLUDES:
- Recommended Duct Sizes Heavy Duty Hood Lengths 3'-4'5'
- Recommended Duct Sizes Medium Duty Hood Lengths 3'-5' 5'
- 2x J-600 Sealant
- 1x DW-NAKS-CK10-LSB-ZC Light Support Band
- 1x DW-NAKS-CK10-APS-ZC Anchor Plate Support
- 1x DW-NAKS-CK10-18CL-ZC 18" Cut Length
- 3x DW-NAKS-CK10-36L-ZC 36" Fixed Length
- 1x DW-NAKS-CK10-NWHA-ZC No-Weld Hood Adapter
- 1x DW-NAKS-CK10-FPE:29x29-ZC Fan Plate Adapter - End
- 400 Series Outer Duct Jacket and Inner Jacket
- UL-1978/UL-2221 Listed
- Limited Lifetime Warranty
FEATURES:
- UL-1978 /UL-2221 listed grease duct
- Made in USA
- 400 Series outer duct jacket and inner jacket
- Overlapping flange connections
- Field cuttable fixed lengths
- Ceramic fiber insulation between inner/outer jacket
- Limited Lifetime Warranty
DUCTWORK OVERVIEW
HoodMart Grease Ducts. MADE IN USA and constructed of all stainless steel. UL-1978 Listed for direct competitiveness against single wall field-welded steel. Conforms to the requirements of NFPA-96. Double Wall Zero Clearance is UL-2221 and UL-1978 Listed. The Double Wall Zero Clearance models are two-hour rated resistant enclosure/duct assembly and can be used as an alternative to the two layers of field applied insulation.

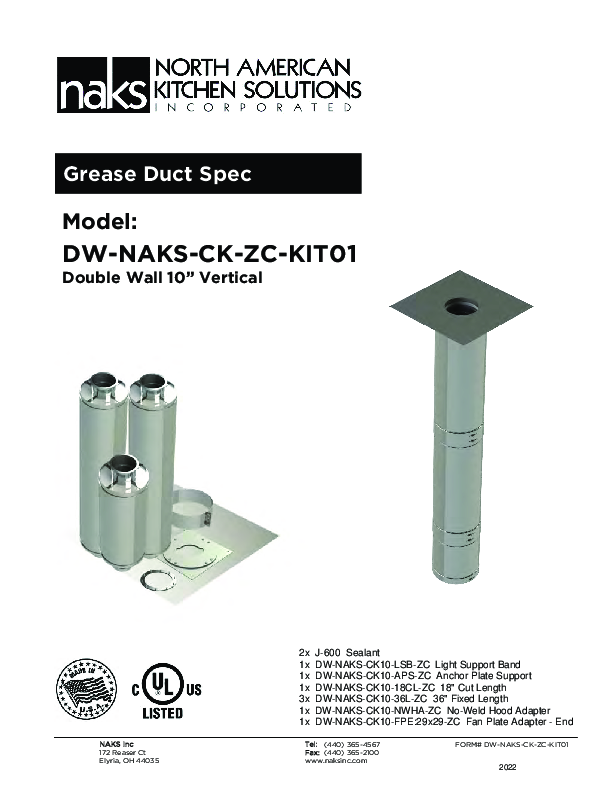

Spec Sheet Downloads:
