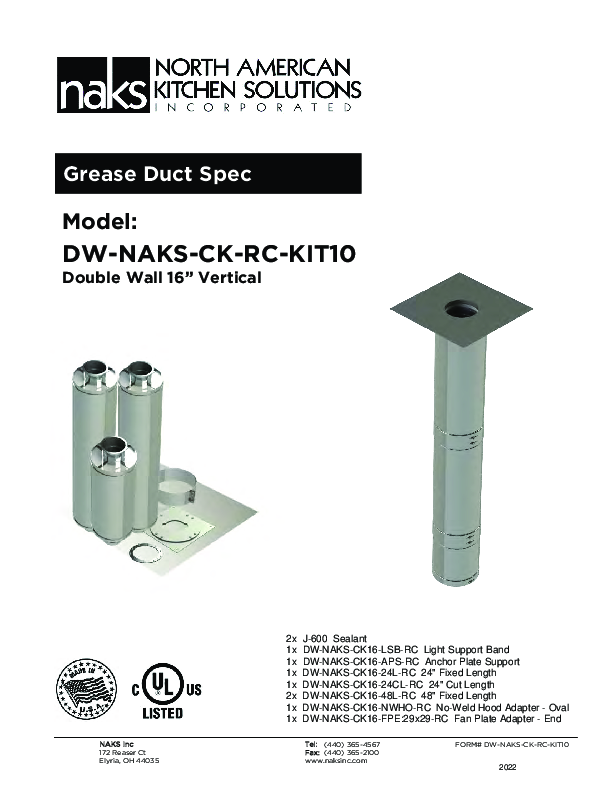

16" - Double Wall Kit, Reduced Clearance, Grease Duct, 10' Straight, Including No Weld Hood and Fan Connections
SKU:
DWNAKS-RC-KIT10

UL Certified Logos

DUCTWORK INCLUDES:

  • Recommended Duct Sizes Heavy Duty Hood Lengths 8'-9'11'
  • Recommended Duct Sizes Medium Duty Hood Lengths 10'-10'11'
  • 2x J-600 Sealant
  • 1x DW-NAKS-CK16-LSB-RC Light Support Band
  • 1x DW-NAKS-CK16-APS-RC Anchor Plate Support
  • 1x DW-NAKS-CK16-24L-RC 24" Fixed Length
  • 1x DW-NAKS-CK16-24CL-RC 24" Cut Length
  • 2x DW-NAKS-CK16-48L-RC 48" Fixed Length
  • 1x DW-NAKS-CK16-NWHO-RC No-Weld Hood Adapter
  • 1x DW-NAKS-CK16-FPE:29x29-RC Fan Plate Adapter - End
  • 400 Series Outer Duct Jacket and Inner Jacket
  • UL-1978 Listed
  • Limited Lifetime Warranty

FEATURES:

  • UL-1978 Listed Grease Duct
  • Made in USA
  • 400 Series outer duct jacket and inner jacket
  • Overlapping flange connections
  • Field cuttable fixed lengths
  • Ceramic fiber insulation between inner/outer jacket
  • Limited Lifetime Warranty

DUCTWORK OVERVIEW

HoodMart Grease Ducts. MADE IN USA and constructed of all stainless steel. UL-1978 Listed for direct competitiveness against single wall field-welded steel. Conforms to the requirements of NFPA-96. Double Wall Reduced Clearance is UL-1978 and UL-102 HT listed. The Double Wall Reduced Clearance models are two-hour rated resistant enclosure/duct assembly and can be used as an alternative to the two layers of field applied insulation.

LET US HELP YOU

Help | How Can We Help You

How Can We Help You?

What Type of Hood Do You Need?

Help | Experts Are Ready to Help You

Experts Are Ready to Help You:

Custom Size Hoods

Ship in 5-7 Business Days.

Talk To A Specialist

Factory Support For All Questions.

CALL 24/7 1.800.715.1014

16" - Double Wall Kit, Reduced Clearance, Grease Duct, 10' Straight, Including No Weld Hood and Fan Connections

SKU:
DWNAKS-RC-KIT10
Orig.Price $3,588.71 Your Price $3,301.61
Shipping Estimator
In stock
16" - Double Wall Kit, Reduced Clearance, Grease Duct, 10' Straight, Including No Weld Hood and Fan Connections DWNAKS-RC-KIT10 SHOP HOODS, DUCTWORK, Double Wall Reduced Clearance Grease Duct Kits, Double Wall Kit - Straight Duct
16" - Double Wall Kit, Reduced Clearance, Grease Duct, 10' Straight, Including No Weld Hood and Fan Connections DWNAKS-RC-KIT10 SHOP HOODS, DUCTWORK, Double Wall Reduced Clearance Grease Duct Kits, Double Wall Kit - Straight Duct

UL Certified Logos

DUCTWORK INCLUDES:

  • Recommended Duct Sizes Heavy Duty Hood Lengths 8'-9'11'
  • Recommended Duct Sizes Medium Duty Hood Lengths 10'-10'11'
  • 2x J-600 Sealant
  • 1x DW-NAKS-CK16-LSB-RC Light Support Band
  • 1x DW-NAKS-CK16-APS-RC Anchor Plate Support
  • 1x DW-NAKS-CK16-24L-RC 24" Fixed Length
  • 1x DW-NAKS-CK16-24CL-RC 24" Cut Length
  • 2x DW-NAKS-CK16-48L-RC 48" Fixed Length
  • 1x DW-NAKS-CK16-NWHO-RC No-Weld Hood Adapter
  • 1x DW-NAKS-CK16-FPE:29x29-RC Fan Plate Adapter - End
  • 400 Series Outer Duct Jacket and Inner Jacket
  • UL-1978 Listed
  • Limited Lifetime Warranty

FEATURES:

  • UL-1978 Listed Grease Duct
  • Made in USA
  • 400 Series outer duct jacket and inner jacket
  • Overlapping flange connections
  • Field cuttable fixed lengths
  • Ceramic fiber insulation between inner/outer jacket
  • Limited Lifetime Warranty

DUCTWORK OVERVIEW

HoodMart Grease Ducts. MADE IN USA and constructed of all stainless steel. UL-1978 Listed for direct competitiveness against single wall field-welded steel. Conforms to the requirements of NFPA-96. Double Wall Reduced Clearance is UL-1978 and UL-102 HT listed. The Double Wall Reduced Clearance models are two-hour rated resistant enclosure/duct assembly and can be used as an alternative to the two layers of field applied insulation.
