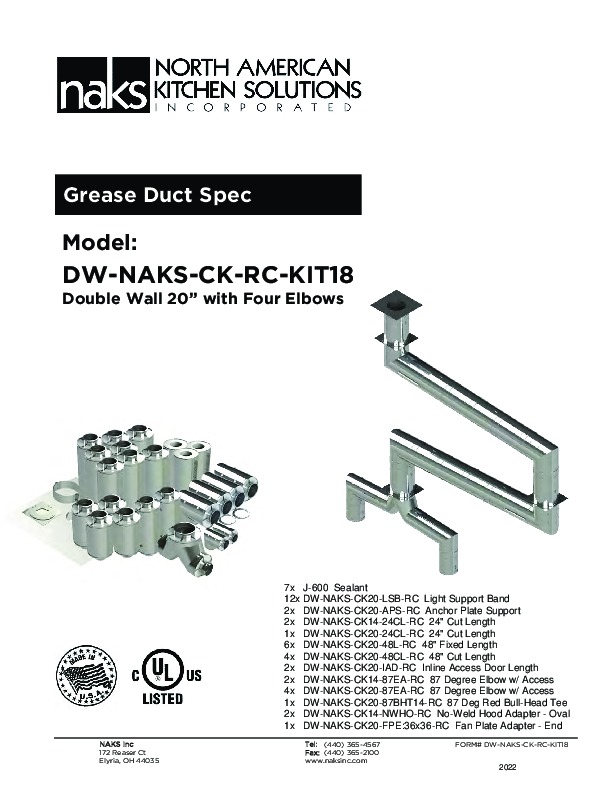

20"- Double Wall Kit, Reduced Clearance, Two 14" Connections, Grease Duct, Four 90's, 50' Straight, Including No Weld Hood and Fan Connections
SKU:
DWNAKS-RC-KIT18
![UL Certified Logos]({{media url="wysiwyg/Hoodmart/crop2.png"}})

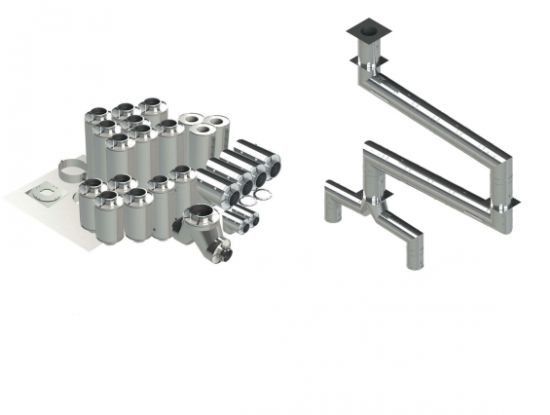

DUCTWORK INCLUDES:
- Recommended Duct Sizes Heavy Duty Hood Lengths 12'-15'5"
- Recommended Duct Sizes Medium Duty Hood Lengths 15'6"-20'
- 7x J-600 Sealant
- 12x DW-NAKS-CK20-LSB-RC Light Support Band
- 2x DW-NAKS-CK20-APS-RC Anchor Plate Support
- 2x DW-NAKS-CK14-24CL-RC 24" Cut Length
- 1x DW-NAKS-CK20-24CL-RC 24" Cut Length
- 6x DW-NAKS-CK20-48L-RC 48" Fixed Length
- 4x DW-NAKS-CK20-48CL-RC 48" Cut Length
- 2x DW-NAKS-CK20-IAD-RC Inline Access Door Length
- 2x DW-NAKS-CK14-87EA-RC 87 Degree Elbow w/ Access
- 4x DW-NAKS-CK20-87EA-RC 87 Degree Elbow w/ Access
- 1x DW-NAKS-CK20-87BHT14-RC 87 Deg Red Bull-Head Tee
- 2x DW-NAKS-CK14-NWHO-RC No-Weld Hood Adapter - Oval
- 1x DW-NAKS-CK20-FPE:36x36-RC Fan Plate Adapter - End
- 400 Series Outer /Inner Duct Jacket
- UL-1978 Listed
- Limited Lifetime Warranty
FEATURES:
- UL-1978 Listed grease duct
- Made in USA
- 400 Series outer duct jacket and inner jacket
- Overlapping flange connections
- Field cuttable fixed lengths
- Ceramic fiber insulation between inner/outer jacket
- Limited Lifetime Warranty
DUCTWORK OVERVIEW

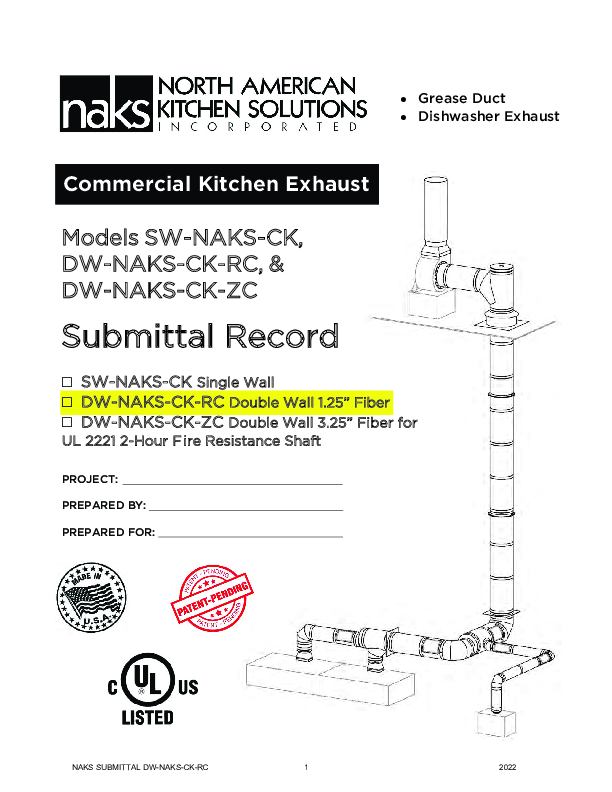

HoodMart Grease Ducts. MADE IN USA and constructed of all stainless steel. UL-1978 Listed for direct competitiveness against single wall field-welded steel. Conforms to the requirements of NFPA-96. Double Wall Reduced Clearance is UL-1978 and UL-102 HT listed. The Double Wall Reduced Clearance models are two-hour rated resistant enclosure/duct assembly and can be used as an alternative to the two layers of field applied insulation.
LET US HELP YOU
How Can We Help You?
What Type of Hood Do You Need?
Experts Are Ready to Help You:
Custom Size Hoods
Ship in 5-7 Business Days.
20"- Double Wall Kit, Reduced Clearance, Two 14" Connections, Grease Duct, Four 90's, 50' Straight, Including No Weld Hood and Fan Connections
SKU:
DWNAKS-RC-KIT18
Orig.Price $24,305.96 Your Price $22,361.48
Shipping Estimator
DUCTWORK INCLUDES:
- Recommended Duct Sizes Heavy Duty Hood Lengths 12'-15'5"
- Recommended Duct Sizes Medium Duty Hood Lengths 15'6"-20'
- 7x J-600 Sealant
- 12x DW-NAKS-CK20-LSB-RC Light Support Band
- 2x DW-NAKS-CK20-APS-RC Anchor Plate Support
- 2x DW-NAKS-CK14-24CL-RC 24" Cut Length
- 1x DW-NAKS-CK20-24CL-RC 24" Cut Length
- 6x DW-NAKS-CK20-48L-RC 48" Fixed Length
- 4x DW-NAKS-CK20-48CL-RC 48" Cut Length
- 2x DW-NAKS-CK20-IAD-RC Inline Access Door Length
- 2x DW-NAKS-CK14-87EA-RC 87 Degree Elbow w/ Access
- 4x DW-NAKS-CK20-87EA-RC 87 Degree Elbow w/ Access
- 1x DW-NAKS-CK20-87BHT14-RC 87 Deg Red Bull-Head Tee
- 2x DW-NAKS-CK14-NWHO-RC No-Weld Hood Adapter - Oval
- 1x DW-NAKS-CK20-FPE:36x36-RC Fan Plate Adapter - End
- 400 Series Outer /Inner Duct Jacket
- UL-1978 Listed
- Limited Lifetime Warranty
FEATURES:
- UL-1978 Listed grease duct
- Made in USA
- 400 Series outer duct jacket and inner jacket
- Overlapping flange connections
- Field cuttable fixed lengths
- Ceramic fiber insulation between inner/outer jacket
- Limited Lifetime Warranty
DUCTWORK OVERVIEW
HoodMart Grease Ducts. MADE IN USA and constructed of all stainless steel. UL-1978 Listed for direct competitiveness against single wall field-welded steel. Conforms to the requirements of NFPA-96. Double Wall Reduced Clearance is UL-1978 and UL-102 HT listed. The Double Wall Reduced Clearance models are two-hour rated resistant enclosure/duct assembly and can be used as an alternative to the two layers of field applied insulation.
Spec Sheet Downloads:
