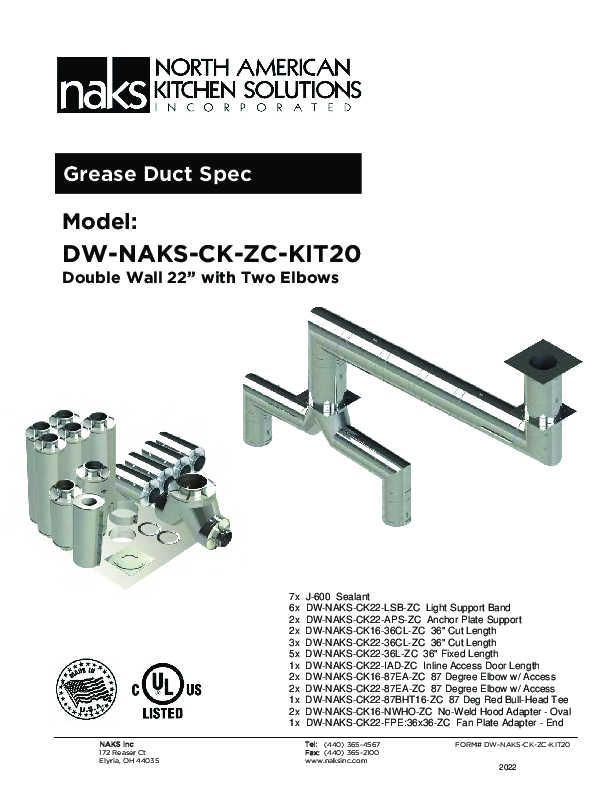

22"- Double Wall Kit, Zero Clearance, Two 16" Connections, Grease Duct, Two 90's, 30' Straight, Including No Weld Hood and Fan Connections
SKU:
DWNAKS-ZC-KIT20

UL Certified Logos

DUCTWORK INCLUDES:

  • Recommended Duct Sizes Heavy Duty Hood Lengths 15'6"-20'
  • 7x J-600 Sealant
  • 6x DW-NAKS-CK22-LSB-ZC Light Support Band
  • 2x DW-NAKS-CK22-APS-ZC Anchor Plate Support
  • 2x DW-NAKS-CK16-36CL-ZC 36" Cut Length
  • 3x DW-NAKS-CK22-36CL-ZC 36" Cut Length
  • 5x DW-NAKS-CK22-36L-ZC 36" Fixed Length
  • 1x DW-NAKS-CK22-IAD-ZC Inline Access Door Length
  • 2x DW-NAKS-CK16-87EA-ZC 87 Degree Elbow w/ Access
  • 2x DW-NAKS-CK22-87EA-ZC 87 Degree Elbow w/ Access
  • 1x DW-NAKS-CK22-87BHT16-ZC 87 Deg Red Bull-Head Tee
  • 2x DW-NAKS-CK16-NWHO-ZC No-Weld Hood Adapter - Oval
  • 1x DW-NAKS-CK22-FPE:36x36-ZC Fan Plate Adapter - End
  • 400 Series Outer / Inner Duct Jacket
  • UL1978/UL2221 Listed
  • Limited Lifetime Warranty

FEATURES:

  • UL-1978 /UL-2221 listed grease duct
  • Made in USA
  • 400 Series outer duct jacket and inner jacket
  • Overlapping flange connections
  • Field cuttable fixed lengths
  • Ceramic fiber insulation between inner/outer jacket
  • Limited Lifetime Warranty

DUCTWORK OVERVIEW

HoodMart Grease Ducts. MADE IN USA and constructed of all stainless steel. UL-1978 Listed for direct competitiveness against single wall field-welded steel. Conforms to the requirements of NFPA-96. Double Wall Zero Clearance is UL-2221 and UL-1978 Listed. The Double Wall Zero Clearance models are two-hour rated resistant enclosure/duct assembly and can be used as an alternative to the two layers of field applied insulation.

LET US HELP YOU

Help | How Can We Help You

How Can We Help You?

What Type of Hood Do You Need?

Help | Experts Are Ready to Help You

Experts Are Ready to Help You:

Custom Size Hoods

Ship in 5-7 Business Days.

Talk To A Specialist

Factory Support For All Questions.

CALL 24/7 1.800.715.1014

22"- Double Wall Kit, Zero Clearance, Two 16" Connections, Grease Duct, Two 90's, 30' Straight, Including No Weld Hood and Fan Connections

SKU:
DWNAKS-ZC-KIT20
Orig.Price $22,034.90 Your Price $20,272.11

Availability: In stock, ready to be shipped

Shipping Estimator
In stock

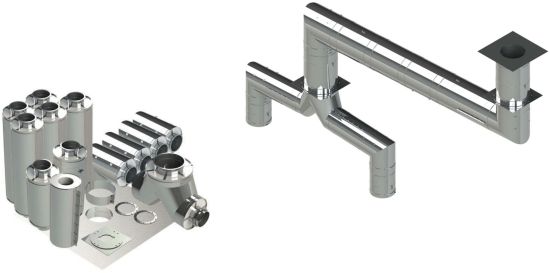

22"- Double Wall Kit, Zero Clearance, Two 16" Connections, Grease Duct, Two 90's, 30' Straight, Including No Weld Hood and Fan Connections DWNAKS-ZC-KIT20 Double Wall Kit - Straight w Pant Leg and 2 - 90's
22"- Double Wall Kit, Zero Clearance, Two 16" Connections, Grease Duct, Two 90's, 30' Straight, Including No Weld Hood and Fan Connections DWNAKS-ZC-KIT20 Double Wall Kit - Straight w Pant Leg and 2 - 90's

UL Certified Logos

DUCTWORK INCLUDES:

  • Recommended Duct Sizes Heavy Duty Hood Lengths 15'6"-20'
  • 7x J-600 Sealant
  • 6x DW-NAKS-CK22-LSB-ZC Light Support Band
  • 2x DW-NAKS-CK22-APS-ZC Anchor Plate Support
  • 2x DW-NAKS-CK16-36CL-ZC 36" Cut Length
  • 3x DW-NAKS-CK22-36CL-ZC 36" Cut Length
  • 5x DW-NAKS-CK22-36L-ZC 36" Fixed Length
  • 1x DW-NAKS-CK22-IAD-ZC Inline Access Door Length
  • 2x DW-NAKS-CK16-87EA-ZC 87 Degree Elbow w/ Access
  • 2x DW-NAKS-CK22-87EA-ZC 87 Degree Elbow w/ Access
  • 1x DW-NAKS-CK22-87BHT16-ZC 87 Deg Red Bull-Head Tee
  • 2x DW-NAKS-CK16-NWHO-ZC No-Weld Hood Adapter - Oval
  • 1x DW-NAKS-CK22-FPE:36x36-ZC Fan Plate Adapter - End
  • 400 Series Outer / Inner Duct Jacket
  • UL1978/UL2221 Listed
  • Limited Lifetime Warranty

FEATURES:

  • UL-1978 /UL-2221 listed grease duct
  • Made in USA
  • 400 Series outer duct jacket and inner jacket
  • Overlapping flange connections
  • Field cuttable fixed lengths
  • Ceramic fiber insulation between inner/outer jacket
  • Limited Lifetime Warranty

DUCTWORK OVERVIEW

HoodMart Grease Ducts. MADE IN USA and constructed of all stainless steel. UL-1978 Listed for direct competitiveness against single wall field-welded steel. Conforms to the requirements of NFPA-96. Double Wall Zero Clearance is UL-2221 and UL-1978 Listed. The Double Wall Zero Clearance models are two-hour rated resistant enclosure/duct assembly and can be used as an alternative to the two layers of field applied insulation.
