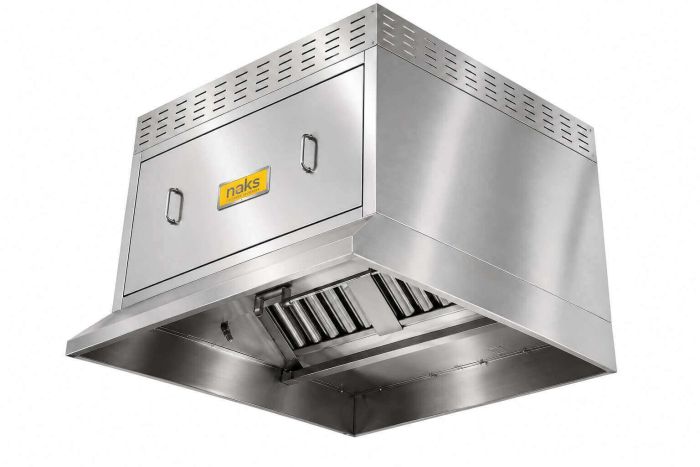

The NAKS VH-36-OVW is a 36" wall-mounted, UL 710B Listed Type I hood with ANSUL fire suppression for grease and smoke capture. Designed for kitchens where exterior ductwork is not feasible. This wall-mount hood provides code-compliant grease, smoke, and odor filtration for electric ovens operating up to 550°F.

• Save on costly ductwork and roof modification costs.
• Reduce HVAC costs compared with ducted exhaust systems!
• Eliminate duct-cleaning expenses with predictable and affordable filter maintenance.
• UL 710B listed and designed to meet NSF & NFPA 96 requirements.

Why Choose the 36" Hanging Ventless Wall Hood:

• UL 710B Listed & Full Type I Rated simplify permitting and inspection for wall-mounted installs above single-appliance lineups.
• Triple Filter Technology (stainless grease filter → aluminum mesh → carbon filter) sequential capture of grease and odor for cleaner discharged air back into the kitchen
• Integrated ANSUL Fire Suppression automatic detection protects staff, equipment, and the building.
• 550 CFM Airflow with Monitoring proper capture velocity confirmed in real time, reducing operator error and inconsistent ventilation.
• Equipment Interlock hood and connected cooking equipment can't operate out of sequence, keeping the line code compliant.
• 1/10 HP Motors, 208–240 VAC energy-efficient and wired for standard commercial power, keeping install and operating costs low.
• LED Strip Lighting for increased visibility of cooking surface.

36” Hanging Ventless Hood Specifications & Equipment:

• Height (Overall): 36" (24" body, 6" lower Skirt, 6" for airflow/zero clearance)
• Depth (Overall): 42" (+ 6" for architectural skirt for Wall unit)
• Width (Overall): 36" (+ 12" for architectural skirt)
• Minimum Hood Overhang
  • Right & Left: 7.5”
  • Front: 15”
• Hood skirts are optional based on space, require field installation.
  • Skirt Length: 48”
  • Skirt Depth: 48”
• Compatible Electric Cooking Equipment: Convection ovens, deck ovens, conveyor ovens, combination ovens, baking ovens, rotisseries, popcorn machines.
  • Max Distance above oven: 4”
  • Door opening/Conveyor Size: 33”
  • MAX Exhaust CFM: 550
• Electrical
  • Convenient power switch for added control and safety
  • 208 /240 Volt VAC
  • Single or Three Phase
  • Maximum 60 amps Overall
  • Ventless unit 5 amps max
• Replaceable grease filters
• 5–7-day lead time (business days from order approval date)
• Made in USA
• 2-year parts / 1-year labor warranty
