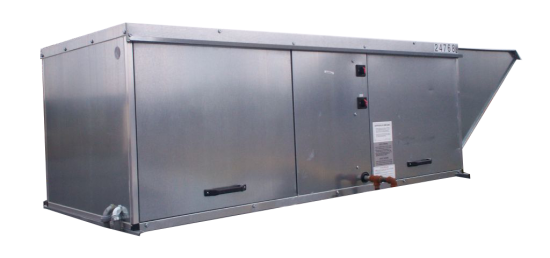

Gas-Fired Tempered Make-Up Air Unit\Maximum 6800 CFM's, 208-230V, 3-Phase with Motorized Damper and a 15" Blower
Your Makeup Air Fans Include:
- Supply fan handles a Maximum of 6800 CFM's @ 0.55" S.P.
- 625000 BTU's. , 75 degree Fahrenheit ( 24 degrees Celsius) Temp Rise
- 5 HP, 3 Phase, 460V, 60 Hz, 8.2 FLA, ODP (Open Drip Proof)
- Motorized Back-Draft Damper
- Curb - Insulation Available
- Recommended for hood sizes 14' - 20'
Makeup Air Fans Features
- Sloped Clam-shell Air Intake, inlcudes easy to clean Aluminum mesh filters
- Maxitrol Series 14 Discharge Temperature Control - 40-90 degree F (4-32 degree C)
- Made in USA
- 3/4" Gas Line Manifold constructed in conformance to ANSI Standards and Industrial Risk Insurers (IRI) insurance requirements
- Limited Warranty - 2 years parts and 90 days labor
Hood System Overview
With value-driven design excellence, T-Series direct-fired make up air unit systems offer unsurpassed economy, application versatility, low maintenance durability, and exceptional product support. The line is ETL certified to ANSI standards. With direct evaporative cooling, outside air is drawn through a water-saturated medium and cooled by evaporation
