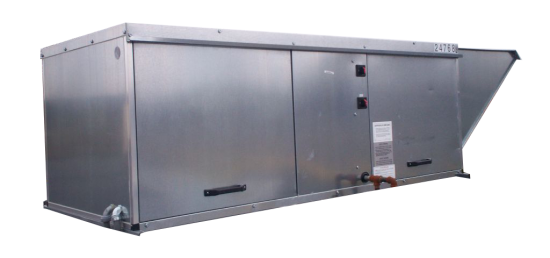

T1 - DIRECT FIRED GAS HEATED SUPPLY AIR
With value-driven design excellence, T-Series direct-fired make up air unit systems offer unsurpassed economy, application versatility, low maintenance durability, and exceptional product support. The line is ETL certified to ANSI standards.
Gas-Fired Tempered Make-Up Air Unit\Maximum 2200 CFM's, Belt Driven, 230V, Single Phase with Motorized Damper and 10" Blower
Your Makeup Air Fans Include:
- Supply fan handles a Maximum of 2200 CFM's @ 0.55" S.P.
- 155,000 BTU's. , 75 degree Fahrenheit ( 24 degrees Celsius) Temp Rise
- 1.500 HP, 1 Phase, 230V, 60 Hz, 7.6 FLA, ODP (Open Drip Proof)
- Motorized Back-Draft Damper
- Curb - Insulation Available
- Recommended for hood sizes 4' - 10'
Makeup Air Fans Features
- Sloped Clam-shell Air Intake, inlcudes easy to clean Aluminum mesh filters
- Maxitrol Series 14 Discharge Temperature Control - 40-90 degree F (4-32 degree C)
- 1/2" Gas Line Manifold constructed in conformance to ANSI Standards and Industrial Risk Insurers (IRI) insurance requirements
