Upblast Exhaust Fans 101

Replacing or installing new kitchen equipment can be confusing in many situations, and each application could require different appliances. Having a general knowledge of your equipment is not only smart ahead of the initial purchase, but also helps the owner understand the amount of cleaning necessary to keep the exhaust fan running properly, and also could help in the diagnosing of any issues with the exhaust fan that may occur.

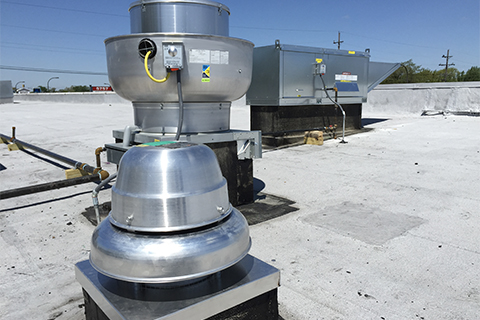

For a basic overview of an upbeats exhaust fan, there are 4 main parts - the roof curb, the fan base, the fan shaft, and the fan bowl.

Roof Curb - the curb is the base or box that is attached to the roof that the fan base sits on top of.

Fan Base - the fan base is the very botton part of the actual exhaust fan itself, and is what attaches to the roof curb to secure the exhaust fan to the roof.

Fan Shaft - The fan shaft is the cylindrical tube that sits between the fan base and the fan bowl.

Fan Bowl - The fan bowl is the top of the upblast exhaust fan, and is generally the largest part of the unit. Inside the fan bowl you'll find the exhaust motor and the fan blades.

This is a very dumbed down, basic version of the components of the upblast exhaust fan. If you want to get into the nitty gritty of it there are baffles, drains, adaptors, vibration isolator, and more than 20 other parts that totally make up the upbeats exhaust fan. But really that majority of that knowledge is only helpful for technicians who would be working on the exhaust fans. HoodMart provides our customers with a wide range of exhaust hood systems - from Compensating (Short Cycle) to Perforated Supply Plenum PSP - as well as all exhaust hood accessories such as no weld Grease Duct, hood filters, canopy hood lights, and curbs. Our walk-in selection offers coolers and freezers from quick ship to custom. If you have questions regarding the purchase of your hood system or walk-in, please feel free to contact one of our experts today by calling us at 1.800.715.1014 or by contacting us through our live chat system.
